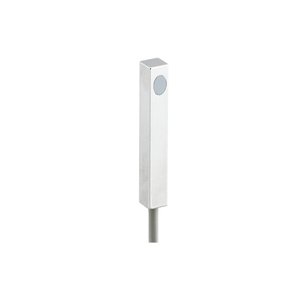

Baumer IFFM 06N35A1/O1L Proximity Sensor

The Baumer IFFM 06N35A1/O1L Proximity Sensor offers a Rectangular design, 1 mm sensing distance, NPN break function (NC) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.

Datasheet

Mounting Type	Flush
Nominal sensing distance Sn	1 mm
Output Circuit	NPN break function (NC)
Connection Types	Cable, L=2 m

Baumer IFFM 06N35A1/O1L Proximity Sensor – Technical Specifications

Specification	Value
Mounting type	Flush
Nominal sensing distance Sn	1 mm
Hysteresis	2 … 20 % of Sr
Output indicator	LED red (backside)
Switching frequency	5 kHz
Voltage supply range +Vs	6 … 30 VDC
Current consumption max. (no load)	12 mA
Output circuit	NPN break function (NC)
Voltage drop Vd	<2 VDC
Output current	200 mA
Short circuit protection	Yes
Reverse polarity protection	Yes
Design	Rectangular
Material (sensing face)	LCP
Housing material	Brass nickel plated
Dimension	6 mm
Housing length	30 mm
Connection types	Cable, L=2 m
Operating temperature	-25 … +75 °C
Protection class	IP 67

Get A Quote for Baumer Brass Nickel Plated Rectangular Sensors IFFM 06N35A1/O1L part no: 10146225 at unbeatable prices. Detailed Specifications of IFFM 06N35A1/O1L, 10146225 feature Flush Mount Sensor, designed for precision applications with a 1 mm nominal sensing distance. The sensor features a LED red (backside) output indicator and operates at a fast switching frequency of 5 kHz ensuring rapid response times. The voltage supply range is from 6 … 30 VDC and the output circuit uses an NPN break function (NC), capable of handling an output current of up to 200 mA. Its Rectangular design and durable Brass nickel plated (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 30 mm and overall dimensions of 6 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 … +75 °C. Match Your Needs with a Quote for your requirement of Baumer Brass Nickel Plated Rectangular Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
