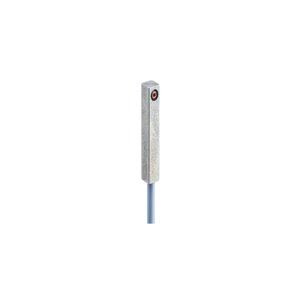

Baumer IFFM 04P1501/O1L Proximity Sensor
The Baumer IFFM 04P1501/O1L Proximity Sensor offers a Rectangular design, 0.8 mm sensing distance, PNP make function (NO) output, Flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Flush |
| Nominal sensing distance Sn | 0.8 mm |
| Output Circuit | PNP make function (NO) |
| Connection Types | Cable, L=2 m |
Baumer IFFM 04P1501/O1L Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 0.8 mm |
| Hysteresis | 2 β¦ 20 % of Sr |
| Output indicator | LED red (backside) |
| Switching frequency | 3 kHz |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | EP |
| Housing material | Stainless steel |
| Dimension | 4 mm |
| Housing length | 22 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 67 |
IndMALL Offers Baumer Rectangular Design Miniature Sensors IFFM 04P1501/O1L part no: 10140707 at economical Choices. Product Tech Specs of IFFM 04P1501/O1L, 10140707 include Flush Mount Sensor, designed for precision applications with a 0.8 mm nominal sensing distance. The sensor features a LED red (backside) output indicator and operates at a fast switching frequency of 3 kHz ensuring rapid response times. The voltage supply range is from 10 β¦ 30 VDC and the output circuit uses an PNP make function (NO), capable of handling an output current of up to 100 mA. Its Rectangular design and durable Stainless steel (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 22 mm and overall dimensions of 4 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 β¦ +75 Β°C. Now's the Time to Secure a Quote for your requirement of Baumer Rectangular Design Miniature Sensors. Trust in our superior pricing and more dedicated support over other Distributors.
