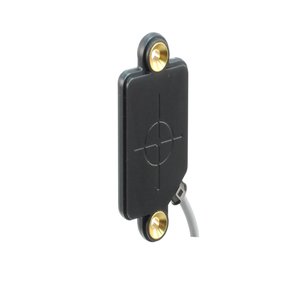

Baumer IF250.P12S-N52.PO1Z.71CV Proximity Sensor
The Baumer IF250.P12S-N52.PO1Z.71CV Proximity Sensor offers a Rectangular design, 12 mm sensing distance, PNP make function (NO) output, Non-flush mounting type, and Cable, L=2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Mounting Type | Non-flush |
| Nominal sensing distance Sn | 12 mm |
| Output Circuit | PNP make function (NO) |
| Connection Types | Cable, L=2 m |
Baumer IF250.P12S-N52.PO1Z.71CV Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 12 mm |
| Assured sensing distance Sa | β€ 81 % of Sn |
| Real sensing distance Sr | Β± 10 % of Sn |
| Hysteresis | 3 β¦ 20 % of Sr |
| Output indicator | LED red |
| Switching frequency | 1000 Hz |
| Voltage supply range +Vs | 6 β¦ 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | PNP make function (NO) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PA |
| Housing material | PA 12 |
| Dimension | 25 mm |
| Housing length | 52.4 mm |
| Connection types | Cable, L=2 m |
| Cable characteristics | PUR 3 x 0.14 mmΒ² |
| Operating temperature | -25 β¦ +75 Β°C |
| Storage temperature | -40 β¦ +75 Β°C |
| Protection class | IP 67 |
| Weight | 36 g |
Please speak to our Technical Engineer for Baumer 6-36 VDC Rectangular Sensors IF250.P12S-N52.PO1Z.71CV part no: 11705026 at attractive prices. Technical Specs Summary of IF250.P12S-N52.PO1Z.71CV, 11705026 includes Non-flush Mount Sensor, designed for precision applications with a 12 mm nominal sensing distance. The sensor features a LED red output indicator and operates at a fast switching frequency of 1000 Hz ensuring rapid response times. The voltage supply range is from 6 β¦ 36 VDC and the output circuit uses an PNP make function (NO), capable of handling an output current of up to 200 mA. Its Rectangular design and durable PA 12 (Polyamide) Housing material ensure reliability in industrial environments. The sensor has a compact housing length of 52.4 mm and overall dimensions of 25 mm. Equipped with an AB550 connection, it operates within a temperature range of -25 β¦ +75 Β°C. Match Your Needs with a Quote for your requirement of Baumer 6-36 VDC Rectangular Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
