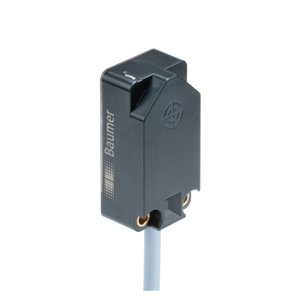

Baumer IF200.D10L-Q41.UAMT.71CV Proximity Sensor
The Baumer IF200.D10L-Q41.UAMT.71CV Proximity Sensor offers a Rectangular design, 0 … 10 mm sensing distance, PNP, Analog 0 ... 10 VDC output, Non-flush mounting type, and Cable PVC, 2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IF200.D10L-Q41.UAMT.71CV |
Baumer IF200.D10L-Q41.UAMT.71CV Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Measuring distance Sd | 0 … 10 mm |
| Resolution | < 0.02 mm (stat.) |
| Repeat accuracy | 0.02 mm |
| Linearity error | ± 50 µm |
| Temperature drift | ± 2 % (Full Scale) |
| Response time (factory characteristic) | < 2.3 ms |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Output circuit | PNP, Analog 0 ... 10 VDC |
| Output signal | - |
| Load resistance | > 10 kOhm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | SAN |
| Housing material | SAN |
| Dimension | 20 mm |
| Housing length | 41 mm |
| Connection types | Cable PVC, 2 m |
| Tightening torque max. | - |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Ask for the Pricing of Baumer Inductive Distance Sensor IF200.D10L-Q41.UAMT.71CV Article No: 11240175 at unbeatable prices. Detailed Specifications of IF200.D10L-Q41.UAMT.71CV, 11240175 feature Non-flush mounting type with a measuring distance of 0 … 10 mm. It delivers < 0.02 mm (stat.) resolution, ensuring repeat accuracy of 0.02 mm. The linearity error is ± 50 µm, with a temperature drift of ± 2 % (Full Scale). The factory-set response time is < 2.3 ms, making it ideal for high-speed applications. It operates within an 12 … 30 VDC voltage supply range, consuming only 25 mA. The Rectangular design includes a SAN sensing face and an SAN housing for durability. The compact structure has an 20 mm dimension and an 41 mm housing length. It connects via a Cable PVC, 2 m and operates in temperatures between -25 … +75 °C with IP 67 protection. Now's the Time to Secure a Quote for your requirement of Inductive Distance Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
