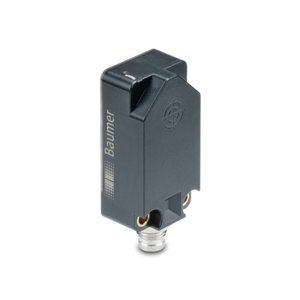

Baumer IF200.D10L-Q41.DPMO.71N/A014 Proximity Sensor
The Baumer IF200.D10L-Q41.DPMO.71N/A014 Proximity Sensor offers a Rectangular design, 0 … 10 mm sensing distance, PNP, Push-pull, Analog 0 ... 10 VDC, IO-Link output, Non-flush mounting type, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IF200.D10L-Q41.DPMO.71N/A014 |
Baumer IF200.D10L-Q41.DPMO.71N/A014 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Measuring distance Sd | 0 … 10 mm |
| Resolution | < 0.020 mm (High Accuracy Mode) |
| Repeat accuracy | 0.020 mm |
| Linearity error | ± 40 µm (S = 0 ... 8 mm), ± 60 µm (S = 0 ... 10 mm) |
| Temperature drift | ± 2 % (Full Scale) |
| Response time (factory characteristic) | < 0.6 ms (High Speed Mode), < 0.9 ms (Standard Mode), < 2.3 ms (Robust Mode), < 10.5 ms (High Accuracy Mode) |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Output circuit | PNP, Push-pull, Analog 0 ... 10 VDC, IO-Link |
| Output signal | - |
| Load resistance | > 10 kOhm |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | SAN |
| Housing material | SAN |
| Dimension | 20 mm |
| Housing length | 41 mm |
| Connection types | Connector M8 4 pin |
| Tightening torque max. | - |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
Send Your Inquiry for Baumer Inductive Distance Sensor IF200.D10L-Q41.DPMO.71N/A014 Article No: 11241894 with cost-effective solutions. Essential Technical Specs of IF200.D10L-Q41.DPMO.71N/A014, 11241894 are Non-flush mounting type with a measuring distance of 0 … 10 mm. It delivers < 0.020 mm (High Accuracy Mode) resolution, ensuring repeat accuracy of 0.020 mm. The linearity error is ± 40 µm (S = 0 ... 8 mm), ± 60 µm (S = 0 ... 10 mm), with a temperature drift of ± 2 % (Full Scale). The factory-set response time is < 0.6 ms (High Speed Mode), < 0.9 ms (Standard Mode), < 2.3 ms (Robust Mode), < 10.5 ms (High Accuracy Mode), making it ideal for high-speed applications. It operates within an 12 … 30 VDC voltage supply range, consuming only 25 mA. The Rectangular design includes a SAN sensing face and an SAN housing for durability. The compact structure has an 20 mm dimension and an 41 mm housing length. It connects via a Connector M8 4 pin and operates in temperatures between -25 … +75 °C with IP 67 protection. Capture the Best Deal with a Quote for your requirement of Inductive Distance Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
