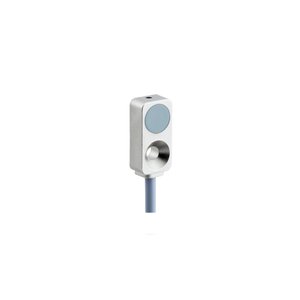

Baumer IF08.D03L-Q25.GP1I.7VCU Proximity Sensor
The Baumer IF08.D03L-Q25.GP1I.7VCU Proximity Sensor offers a Rectangular design, 0 β¦ 3 mm sensing distance, PNP, Push-pull, IO-Link output, Quasi-flush mounting type, and Cable PUR, 2 m connection. Manufactured by Baumer under the Baumer Proximity Sensor category, this model belongs to the IF Series.
| Brand | Baumer |
| Product Type | Proximity Sensor |
| Model Number | IF08.D03L-Q25.GP1I.7VCU |
Baumer IF08.D03L-Q25.GP1I.7VCU Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Quasi-flush |
| Measuring distance Sd | 0 β¦ 3 mm |
| Resolution | < 0.005 mm (High Accuracy Mode) |
| Repeat accuracy | 0.01 mm |
| Linearity error | Β± 10 Β΅m (S = 0 ... 2 mm), Β± 90 Β΅m (S = 0 ... 3 mm) |
| Temperature drift | Β± 2 % (Full Scale: S = 0 ... 2 mm), Β± 6 % (Full Scale: S = 0 ... 3 mm) |
| Response time (factory characteristic) | < 1 ms |
| Voltage supply range +Vs | 8 β¦ 30 VDC |
| Current consumption max. (no load) | 15 mA |
| Output circuit | PNP, Push-pull, IO-Link |
| Output signal | - |
| Load resistance | - |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 24.6 mm |
| Connection types | Cable PUR, 2 m |
| Tightening torque max. | 0.8 Nm |
| Operating temperature | -20 β¦ +70 Β°C |
| Protection class | IP 67 |
Mail Us for your needs in Baumer Inductive Distance Sensor IF08.D03L-Q25.GP1I.7VCU Article No: 11214892 with budget-friendly prices. The Main Technical Parameters of IF08.D03L-Q25.GP1I.7VCU, 11214892 include Quasi-flush mounting type with a measuring distance of 0 β¦ 3 mm. It delivers < 0.005 mm (High Accuracy Mode) resolution, ensuring repeat accuracy of 0.01 mm. The linearity error is Β± 10 Β΅m (S = 0 ... 2 mm), Β± 90 Β΅m (S = 0 ... 3 mm), with a temperature drift of Β± 2 % (Full Scale: S = 0 ... 2 mm), Β± 6 % (Full Scale: S = 0 ... 3 mm). The factory-set response time is < 1 ms, making it ideal for high-speed applications. It operates within an 8 β¦ 30 VDC voltage supply range, consuming only 15 mA. The Rectangular design includes a PBT sensing face and an Stainless steel housing for durability. The compact structure has an 8 mm dimension and an 24.6 mm housing length. It connects via a Cable PUR, 2 m and operates in temperatures between -20 β¦ +70 Β°C with IP 67 protection. Customize Your Experience with a Quote for your requirement of Inductive Distance Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
