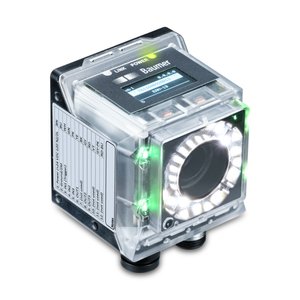

Baumer IDC230.W06 , 11727455: Multicode Reader
Technical Specifications of Baumer Multicode Reader IDC230.W06:
| Reading Distance Front Edge | 50 ... 1000 mm |
| Resolution | 1280 x 800 (1MP) |
| Image Sensor | CMOS-Sensor, monochrome, global Shutter |
| Light Source | LED illumination with 16 LED, 4 segments individually switchable |
Baumer Multicode Reader IDC230.W06 11727455 Technical Specifications
| Specification | Value |
|---|---|
| Part location | Part location on contours |
| Identification | Barcode, Matrix code, Text |
| 1D codes | 2/5 Industrial, 2/5 Interleaved, Codabar, Code 32 (converted from Code 39), Code 39, Code 39 Extended, Code 93, Code 128, EAN-8 Add-On 2, EAN-8 Add-On 5, EAN-8, EAN-13 Add-On 2, EAN-13 Add-On 5, EAN-13, GS1 DataBar Expanded Stacked, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Truncated, GS1-128, MSI, PharmaCode, UPC-A Add-On 2, UPC-A Add-On 5, UPC-A, UPC-E Add-On 2, UPC-E Add-On 5, UPC-E |
| 2D codes | Data Matrix ECC 200, QR Code, Micro QR Code, PDF417, Aztec Code, DotCode, GS1 DataMatrix, GS1 QR Code, GS1 Aztec Code, GS1 DotCode |
| Reading distance (front edge) | 50 ... 1000 mm |
| Field of View min. | 41 x 25 mm |
| Field of View max. | 649 x 405 mm |
| Min. modul size 1D | 0.05 mm / 2 mil |
| Min. modul size 2D | 0.1 mm / 4 mil |
| Decoding rate max. | 40 codes per second at 1MP |
| Image sensor | CMOS-Sensor, monochrome, global Shutter |
| Resolution | 1280 x 800 (1MP) |
| Focal length | 6 mm |
| Focus | Electromechanical auto focus |
| Light source | LED illumination with 16 LED, 4 segments individually switchable |
| Indicator ring | 4 RGB LED for pass / fail etc. |
| Pointer | Green (570 nm), approximate center of image |
| Display | OLED, 128 x 64 pixels, 0.96" with burn-in protection |
| Buttons | 2 pcs qTeach buttons |
| Software / parametrisation | Integrated Webserver for parametrisation |
| Interface | Gigabit Ethernet, 3/3 digitale I/O, USB (Parametrisierung und HID) |
| Protocols | PROFINET (CC-A), Ethernet/IP, TCP, FTP, SFTP, USB-HID (virtual keyboard) |
| Voltage supply range +Vs | #ERROR! |
| Power supply | Typ. 5.5 W (1.2 A max. at 24 V) |
| Electrical connection | M12, 12-pin, A-coded, male |
| Ethernet connection | 1000-Mbit/s-Ethernet, M12, 8-pin, X-coded, socket |
| USB Connection | Type C (HID, parametrization) |
| Dimensions (W x H x D) | 50 mm x 52 mm x 50 mm |
| Weight | 350 g |
| Ambient temperature | 0 ... + 45 Β°C |
| Storage temperature | - 10 ... + 60 Β°C |
| Ambient humidity | 0 ... 85 % |
| Protection class (IEC 60529) | IP 67 |
| Vibration (sinusoidal) | 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis, 30 min endurance at f = 55 Hz per axis, IEC 60068-2-6:2008 |
| Shock (semi-sinusoidal) | 30 g / 11 ms, 6 jolts per axis and direction, IEC 60068-2-27:2009 |
