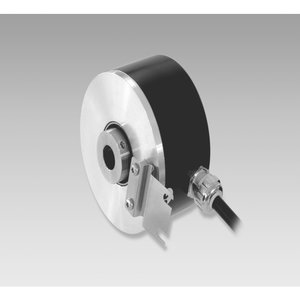

HS35P - Programmable: 11076339 - Baumer Programmable Encoder
Technical Specifications of Baumer Programmable Encoder HS35P - Programmable:
| Voltage supply | 4.75...30 VDC |
| Sensing method | Optical |
| Size (flange) | ΓΈ3.15" (ΓΈ80 mm) |
| Connection | MIL-connector, 7-pin, MIL-connector, 10-pin, Cable (AWG26 wire) |
Baumer Programmable Encoder HS35P - Programmable 11076339 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 4.75...30 VDC |
| Consumption w/o load | β€50 mA (24 VDC), β€180 mA (5 VDC) + output load, max. 250 mA |
| Pulses per revolution | 1 β¦ 8192 |
| Sensing method | Optical |
| Output frequency | β€300 kHz (TTL), β€160 kHz (HTL) |
| Output signals | A, B, Z, A, B, Z + complement, Β½ cycle index gated with negative B channel |
| Output stages | Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof, Push-pull (HTL, 7272) Vout = Vin, short-circuit proof |
| Size (flange) | ΓΈ3.15" (ΓΈ80 mm) |
| Shaft type | ΓΈ0.375...1" (ΓΈ9.525...25.4 mm) (through hollow shaft isolated) |
| Protection EN 60529 | IP 54, IP 65, IP 67 |
| Operating speed | β€5000 rpm (see temperature diagram) |
| Starting torque | β€3 in-oz (77 Β°F, IP 65), β€0.02 Nm (+25 Β°C, IP 65) |
| Material | Housing: aluminium, powder-coated, Shaft: stainless steel |
| Operating temperature | -40...+212 Β°F (-40...+100 Β°C), (fixed cable): see temperature diagram |
| Relative humidity | 98 % non-condensing |
| Resistance | EN 60068-2-6 Vibration 20 g, 60-2000 Hz, EN 60068-2-27 Shock 200 g, 6 ms |
| Connection | MIL-connector, 7-pin, MIL-connector, 10-pin, Cable (AWG26 wire) |
| Weight approx. | 23 oz., 660 g |
Talk to Our Engineer for Baumer Programmable Encoder HS35P - Programmable part no: 11076339 with exclusive offers. Core System Specifications of HS35P - Programmable, 11076339 are voltage supply of 4.75...30 VDC and a low power consumption of β€50 mA (24 VDC), β€180 mA (5 VDC) + output load, max. 250 mA without load. These encoders use Optical sensing for accurate measurement and provide output frequencies of β€300 kHz (TTL), β€160 kHz (HTL). The available output stages include Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof, Push-pull (HTL, 7272) Vout = Vin, short-circuit proof. The encoders feature a ΓΈ3.15" (ΓΈ80 mm) flange size and operate at speeds of up to β€5000 rpm (see temperature diagram). The Housing: aluminium, powder-coated, Shaft: stainless steel. Connection options include MIL-connector, 7-pin, MIL-connector, 10-pin, Cable (AWG26 wire). The approximate weight is 23 oz., 660 g. Don't Miss Out on a Quote for your requirement of Baumer Programmable Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
