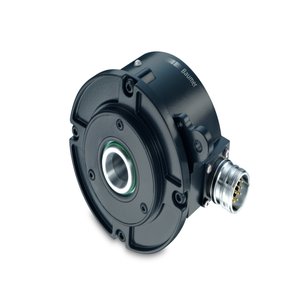

Baumer HOG 9 G Rotary Encoder
The Baumer HOG 9 G Rotary Encoder offers a ΓΈ97 mm size, 300 β¦ 5000 ppr, Optical method, and 2x flange connector M23, 12-pin connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Connection | 2x flange connector M23, 12-pin |
Baumer HOG 9 G Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 5 VDC Β±5 %, 9...30 VDC |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 300 β¦ 5000 |
| Phase shift | 90 Β° Β±20Β° |
| Duty cycle | 40β¦60 % |
| Reference signal | Zero pulse, width 90Β° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Size (flange) | ΓΈ97 mm |
| Shaft type | ΓΈ16 mm (blind hollow shaft), ΓΈ17 mm (cone shaft 1:10) |
| Admitted shaft load | β€400 N axial, β€500 N radial |
| Protection EN 60529 | IP 56 |
| Operating speed | β€10000 rpm (mechanical) |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 160 gcmΒ² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -30...+100 Β°C, -25...+100 Β°C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 17 g, 10-2000 Hz, IEC 60068-2-27, Shock 275 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x flange connector M23, 12-pin |
| Weight approx. | 1.1 kg |
Get A Quote for Baumer Ip56 Incremental Encoder HOG 9 G part no: 11043628 at the best price. Here are the brief Technical Specifications of HOG 9 G, 11043628 are voltage supply of 5 VDC Β±5 %, 9...30 VDC and pulses per revolution ranging from 300 β¦ 5000. The encoders provide a phase shift of 90 Β° Β±20Β° and a duty cycle of 40β¦60 %, with a Zero pulse, width 90Β°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ΓΈ97 mm flange size and operate at speeds of up to -30...+100 Β°C, -25...+100 Β°C (>3072 pulses). Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via 2x flange connector M23, 12-pin. It's Time to get a Quote for your requirement of Baumer Ip56 Incremental Encoder. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
