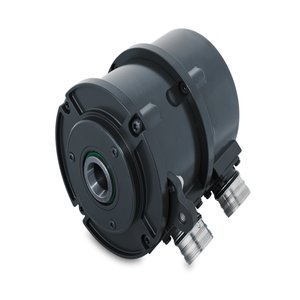

Baumer HOG 9 G Rotary Encoder
The Baumer HOG 9 G Rotary Encoder offers a ø97 mm size, 300 … 5000 ppr, Optical method, and 2x flange connector M23, 12-pin connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Encoders.
| Voltage Supply | 5 VDC ±5 %, 9...30 VDC |
| Sensing Method | Optical |
| Size (flange) | ø97 mm |
| Connection | 2x flange connector M23, 12-pin |
Baumer HOG 9 G Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 5 VDC ±5 %, 9...30 VDC |
| Consumption w/o load | ≤100 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Output frequency | ≤120 kHz, ≤300 kHz (on request) |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Sensing method | Optical |
| Size (flange) | ø97 mm |
| Shaft type | ø16 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) |
| Admitted shaft load | ≤400 N axial, ≤500 N radial |
| Protection EN 60529 | IP 56 |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 160 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -30...+100 °C, -25...+100 °C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 17 g, 10-2000 Hz, IEC 60068-2-27, Shock 275 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x flange connector M23, 12-pin |
| Weight approx. | 1.1 kg |
| Operating speed | ≤10000 rpm (mechanical) |
