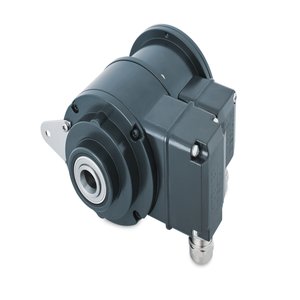

Baumer HOG 10 G Rotary Encoder
The Baumer HOG 10 G Rotary Encoder offers a ΓΈ105 mm size, 300 β¦ 5000 ppr, Optical method, and 2x terminal box, 4x terminal box (with option M) connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Encoders.
| Voltage Supply | 9...30 VDC, 5 VDC Β±5 % |
| Sensing Method | Optical |
| Size (flange) | ΓΈ105 mm |
| Connection | 2x terminal box, 4x terminal box (with option M) |
Baumer HOG 10 G Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC, 5 VDC Β±5 % |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 300 β¦ 5000 |
| Phase shift | 90 Β° Β±20Β° |
| Duty cycle | 40β¦60 % |
| Reference signal | Zero pulse, width 90Β° |
| Output frequency | β€120 kHz, β€300 kHz (on request) |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Sensing method | Optical |
| Shaft insulation | Suitable up to 2.8 kV |
| Transmission length | β€350 m at 100 kHz (HTL-P), β€550 m at 100 kHz (TTL) |
| Size (flange) | ΓΈ105 mm |
| Shaft type | ΓΈ16...20 mm (blind hollow shaft), ΓΈ17 mm (cone shaft 1:10) |
| Admitted shaft load | β€450 N axial, β€600 N radial |
| Protection EN 60529 | IP 66 |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 340 gcmΒ² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -40...+100 Β°C, -25...+100 Β°C (>3072 pulses) |
| Resistance | IEC 60068-2-6, Vibration 20 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box, 4x terminal box (with option M) |
| Weight approx. | 2.9 kg, 3.3 kg (with option M) |
| Operating speed | β€6000 rpm (mechanical) |
