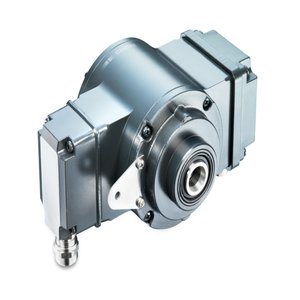

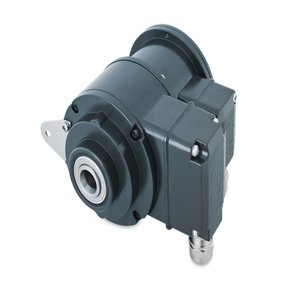

Baumer HOG 10 + FSL Rotary Encoder
The Baumer HOG 10 + FSL Rotary Encoder offers a ø105 mm size, 300 … 5000 ppr, Optical method, and 2x terminal box, 3x terminal box (with option M) connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Incremental Encoder.
| Sensing Method | Optical |
| Switching Outputs | 1 output, speed control |
| Connection | 2x terminal box, 3x terminal box (with option M) |
Baumer HOG 10 + FSL Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC; 5 VDC ±5 % |
| Consumption w/o load | ≤100 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Switching accuracy | ± 4 % (Δn = 2 rpm/s);, 20 % (Δn = 1500 rpm/s) |
| Switching outputs | 1 output, speed control |
| Output switching capacity | ≤6 A / 230 VAC; ≤1 A / 125 VDC, (EAC: <50 VAC / 75 VDC) |
| Switching hysteresis | 40 % of switching speed |
| Size (flange) | ø105 mm |
| Shaft type | ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) |
| Admitted shaft load | ≤450 N axial, ≤600 N radial |
| Protection EN 60529 | IP 66 |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 400 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -40...+100 °C, -25...+100 °C (>3072 pulses), -50...+100 °C (optional) |
| Resistance | IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 50 g, 11 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box, 3x terminal box (with option M) |
| Weight approx. | 2.2 kg, 2.4 kg (with option M) |
Call us for Baumer Encoder With Integrated Centrifugal Switch HOG 10 + FSL part no: 11077197 at the best rates. Technical Attributes of HOG 10 + FSL, 11077197 are voltage supply of 9...30 VDC; 5 VDC ±5 % and pulses per revolution ranging from 300 … 5000. The encoders provide a phase shift of 90 ° ±20° and a duty cycle of 40…60 %, with a Zero pulse, width 90°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ø105 mm flange size and operate at speeds of up to -40...+100 °C, -25...+100 °C (>3072 pulses), -50...+100 °C (optional). Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via 2x terminal box, 3x terminal box (with option M). Unlock Exclusive Pricing with a Quote for your requirement of Baumer Encoder With Integrated Centrifugal Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
