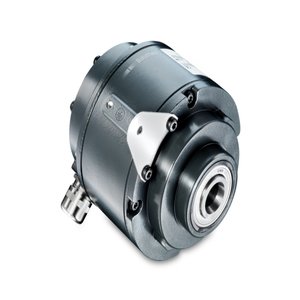

HOG 10: 11043628 - Baumer Hubner Encoder
Technical Specifications of Baumer Hubner Encoder HOG 10 11043628:
| Voltage Supply | 9...30 VDC, 5 VDC Β±5 % |
| Sensing Method | Optical |
| Connection | Terminal box, Terminal cover, 2x terminal box (with option M) |
Baumer Hubner Encoder HOG 10 11043628 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 9...30 VDC, 5 VDC Β±5 % |
| Consumption w/o load | β€100 mA |
| Pulses per revolution | 300 β¦ 5000 |
| Phase shift | 90 Β° Β±20Β° |
| Duty cycle | 40β¦60 % |
| Reference signal | Zero pulse, width 90Β° |
| Sensing method | Optical |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL-P (power linedriver), TTL/RS422 |
| Size (flange) | ΓΈ105 mm |
| Shaft type | ΓΈ12...20 mm (blind hollow shaft), ΓΈ17 mm (cone shaft 1:10) |
| Admitted shaft load | β€450 N axial, β€600 N radial |
| Protection EN 60529 | IP 66 |
| Operating speed | β€6000 rpm (mechanical) |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 340 gcmΒ² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
Mail Us for your needs in Baumer Hubner Encoder HOG 10 part no: 11043628 with budget-friendly prices. The Main Technical Parameters of HOG 10, 11043628 include voltage supply of 9...30 VDC, 5 VDC Β±5 % and pulses per revolution ranging from 300 β¦ 5000. The encoders provide a phase shift of 90 Β° Β±20Β° and a duty cycle of 40β¦60 %, with a Zero pulse, width 90Β°. Using Optical sensing technology, the encoders offer output signals including K1, K2, K0 + inverted, Error output (option EMS). The available output stages are HTL-P (power linedriver), TTL/RS422, ensuring versatile performance. The encoders come in an ΓΈ105 mm flange size and operate at speeds of up to -40...+100 Β°C, -25...+100 Β°C (>3072 pulses), -50...+100 Β°C (optional). Constructed with a durable Housing: aluminium die-cast, Shaft: stainless steel, they offer connections via Terminal box, Terminal cover, 2x terminal box (with option M). Customize Your Experience with a Quote for your requirement of Baumer Hubner Encoder. Experience the difference with our competitive pricing and superior support over other Suppliers.
