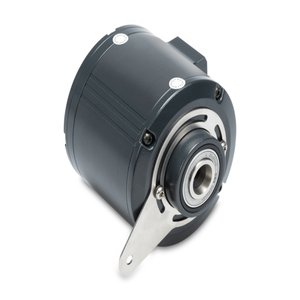

Baumer HMG10P-B - Profibus DP Rotary Encoder
The Baumer HMG10P-B - Profibus DP Rotary Encoder offers a ø105 mm size, ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) type, Magnetic method, and Bus connecting box, Terminal box incremental connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Absolute Encoder.
| Brand | Baumer |
| Product Type | Encoder |
| Product | HMG10P-B - Profibus DP |
Baumer HMG10P-B - Profibus DP Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤200 mA |
| Initializing time | ≤500 ms after power on |
| Interface | Profibus-DPV0/V2 |
| Function | Multiturn |
| Transmission rate | 9.6 … 12000 kBaud |
| Device adress | Rotary switches in bus connecting box |
| Steps per revolution | 8192 / 13 bit |
| Number of revolutions | 65536 / 16 bit |
| Additional outputs | Square-wave TTL/HTL,TTL/RS422 |
| Sensing method | Magnetic |
| Programmable parameters | Bus system: see bus features, Additional output (number of pulses), switch-off and switch-on speeds |
| Diagnostic function | Position or parameter error |
| Status indicator | DUO-LED (bus connecting box) 4 LEDs in device back side |
| Switching accuracy | ± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector, solid state relay on request) |
| Output switching capacity | 30 VDC; ≤100 mA |
| Switching delay time | ≤20 ms |
| Size (flange) | ø105 mm |
| Shaft type | ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) |
| Flange | Support plate, 360° freely positionable |
| Protection EN 60529 | IP 66 / IP 67 |
| Operating speed | ≤6000 rpm |
| Range of switching speed | ns (off) = ±2...6000 rpm, factory setting 6000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 950 gcm² |
| Admitted shaft load | ≤450 N axial, ≤650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 400 g, 1 ms |
| Weight approx. | 2.2 kg (depending on version) |
| Connection | Bus connecting box, Terminal box incremental |
Ask for the Pricing of Baumer Industrial Encoder With Profibus HMG10P-B - Profibus DP at unbeatable prices. Detailed Specifications of HMG10P-B - Profibus DP, feature voltage supply of 10...30 VDC and consumption of ≤200 mA without load. These encoders feature a fast initializing time of ≤500 ms after power on, ensuring quick setup. The Magnetic sensing method guarantees precise performance, with 1 output (Open collector, solid state relay on request). The output switching capacity is 30 VDC; ≤100 mA. The operating speed reaches up to ≤6000 rpm, with a switching speed range of ns (off) = ±2...6000 rpm, factory setting 6000 rpm. The Housing: aluminium alloy, Shaft: stainless steel shaft for added strength. Connections include a Bus connecting box, Terminal box incremental outputs. Now's the Time to Secure a Quote for your requirement of Baumer Industrial Encoder With Profibus. We're committed to offering more favorable pricing and more responsive support than other Traders.
