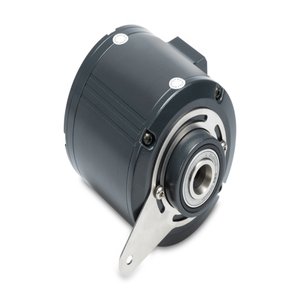

Baumer HMG10-T - SSI Rotary Encoder
The Baumer HMG10-T - SSI Rotary Encoder offers a ΓΈ105 mm size, ΓΈ16...20 mm (through hollow shaft) type, Magnetic method, and Terminal box, Flange connector M23 connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Absolute Encoder.
| Brand | Baumer |
| Product Type | Encoder |
| Product | HMG10-T - SSI |
Baumer HMG10-T - SSI Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 4.75...30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | β€100 mA (SSI) |
| Initializing time | β€500 ms after power on |
| Interface | SSI |
| Function | Multiturn |
| Steps per revolution | 1048576 / 20 bit |
| Number of revolutions | 1048576 / 20 bit |
| Additional outputs | Square-wave TTL/HTL,TTL/RS422 |
| Sensing method | Magnetic |
| Diagnostic function | Function control |
| Status indicator | 4 LEDs in device back side |
| Switching accuracy | Β± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector, solid state relay on request) |
| Output switching capacity | 30 VDC; β€100 mA |
| Switching delay time | β€20 ms |
| Size (flange) | ΓΈ105 mm |
| Shaft type | ΓΈ16...20 mm (through hollow shaft) |
| Flange | Support plate, 360Β° freely positionable |
| Protection EN 60529 | IP 66 / IP 67 |
| Operating speed | β€12000 rpm |
| Range of switching speed | ns (off) = Β±2...12000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 950 gcmΒ² |
| Admitted shaft load | β€450 N axial, β€650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40...+95 Β°C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 400 g, 1 ms |
| Weight approx. | 1.6 kg (depending on version) |
| Connection | Terminal box, Flange connector M23 |
