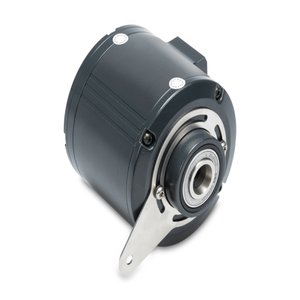

Baumer HMG10-B - Incremental Rotary Encoder
The Baumer HMG10-B - Incremental Rotary Encoder offers a ø105 mm size, ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) type, Magnetic method, and Terminal box, Flange connector M23 connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the Heavyduty Absolute Encoder.
| Brand | Baumer |
| Product Type | Encoder |
| Product | HMG10-B - Incremental |
Baumer HMG10-B - Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 4.75...30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | ≤100 mA |
| Initializing time | ≤ 500 ms after power on |
| Sensing method | Magnetic |
| Programmable parameters | Pulse number, Switch-off and switch-on speeds, Switching delay time |
| Diagnostic function | Function control |
| Status indicator | 4 LEDs in device back side |
| Switching accuracy | ± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector) |
| Output switching capacity | 30 VDC; ≤100 mA |
| Switching delay time | ≤20 ms |
| Size (flange) | ø105 mm |
| Shaft type | ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) |
| Flange | Support plate for torque arm, 360° freely positionable |
| Protection EN 60529 | IP 66 / IP 67 |
| Operating speed | ≤12000 rpm |
| Range of switching speed | ns (off) = ±2...12000 rpm, factory setting 6000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 950 gcm² |
| Admitted shaft load | ≤450 N axial, ≤650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40...+95 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration 30 g, 10-2000 Hz, IEC 60068-2-27, Shock 400 g, 1 ms |
| Weight approx. | 1.6 kg |
| Connection | Terminal box, Flange connector M23 |
| Pulses per revolution | 1 … 131072 |
Mail Us for your needs in Baumer Aluminium Alloy Housing Material Encoder HMG10-B - Incremental with budget-friendly prices. The Main Technical Parameters of HMG10-B - Incremental, inludce voltage supply of 4.75...30 VDC and consumption of ≤100 mA without load. These encoders feature a fast initializing time of ≤ 500 ms after power on, ensuring quick setup. The Magnetic sensing method guarantees precise performance, with 1 output (Open collector). The output switching capacity is 30 VDC; ≤100 mA. The operating speed reaches up to ≤12000 rpm, with a switching speed range of ns (off) = ±2...12000 rpm, factory setting 6000 rpm. The Housing: aluminium alloy, Shaft: stainless steel shaft for added strength. Connections include a Terminal box, Flange connector M23 outputs. Customize Your Experience with a Quote for your requirement of Baumer Aluminium Alloy Housing Material Encoder. Experience the difference with our competitive pricing and superior support over other Suppliers.
