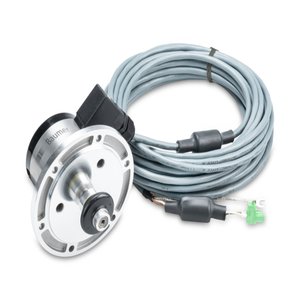

GTF7.16L/460 KM982792G25: 11094700 - Baumer Screw Terminal Tachogenerator
Technical Specifications of Baumer Screw Terminal Tachogenerator GTF7.16L/460 KM982792G25 11094700:
| Size Flange | ø115 mm |
| Shaft Type | ø11 x 30 mm solid shaft (without key) |
| Connection | Screw terminal connector, Cable 12.5 m |
Baumer Screw Terminal Tachogenerator GTF7.16L/460 KM982792G25 11094700 Technical Specifications:
| Specification | Value |
|---|---|
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ± 0.05 %/K (open-circuit) |
| Isolation class | B |
| Calibration tolerance | ±5 % |
| Climatic test | Humid heat, constant (IEC 60068-2-3, Ca) |
| Performance | 0.6 W (speed ≥5000 rpm) |
| Armature-circuit time-constant | <4 µs |
| Open-circuit voltage | 60 V per 1000 rpm |
| Size (flange) | ø115 mm |
| Shaft type | ø11 x 30 mm solid shaft (without key) |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 55 |
| Torque | 1.5 Ncm |
| Rotor moment of inertia | 0.6 kgcm² |
| Admitted shaft load | ≤100 N axial, ≤200 N radial |
| Material | Housing: stainless steel / plastic, Shaft: stainless steel |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 1.1 kg |
| Connection | Screw terminal connector, Cable 12.5 m |
| Operating temperature | -30...+130 °C |
| Rubber friction wheel | 75 mm |
Get A Quote for Baumer Screw Terminal Tachogenerator GTF7.16L/460 KM982792G25 at the best price. Here are the brief Technical Specifications of GTF7.16L/460 KM982792G25, are reversal tolerance of ≤0.1 % and a linearity tolerance of ≤0.15 %, ensuring high precision in performance. The temperature coefficient is ± 0.05 %/K (open-circuit) in open-circuit conditions, while the calibration tolerance is ±5 %, maintaining accuracy even under varying conditions. These encoders deliver 0.6 W (speed ≥5000 rpm), with an open-circuit voltage range of 60 V per 1000 rpm. The encoders feature a ø115 mm flange size and a torque of 1.5 Ncm, providing reliable operation. Constructed from durable Housing: stainless steel / plastic, Shaft: stainless steel, they ensure longevity Connection Screw terminal connector, Cable 12.5 m . It's Time to get a Quote for your requirement of Baumer Screw Terminal Tachogenerator. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
