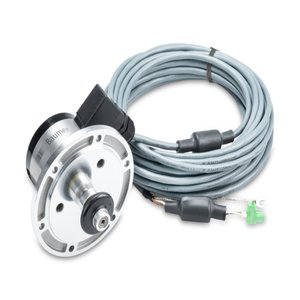

GTF7.16L/460 KM982792G13: 11094698 - Baumer 1.5 Ncm Torque Tachogenerator
Technical Specifications of Baumer 1.5 Ncm Torque Tachogenerator GTF7.16L/460 KM982792G13 11094698:
| Size Flange | ΓΈ115 mm |
| Shaft Type | ΓΈ11 x 30 mm solid shaft (without key) |
| Connection | Screw terminal connector, Cable 12.5 m |
Baumer 1.5 Ncm Torque Tachogenerator GTF7.16L/460 KM982792G13 11094698 Technical Specifications:
| Specification | Value |
|---|---|
| Reversal tolerance | β€0.1 % |
| Linearity tolerance | β€0.15 % |
| Temperature coefficient | Β± 0.05 %/K (open-circuit) |
| Isolation class | B |
| Calibration tolerance | Β±5 % |
| Climatic test | Humid heat, constant (IEC 60068-2-3, Ca) |
| Performance | 0.6 W (speed β₯5000 rpm) |
| Armature-circuit time-constant | <4 Β΅s |
| Open-circuit voltage | 60 V per 1000 rpm |
| Size (flange) | ΓΈ115 mm |
| Shaft type | ΓΈ11 x 30 mm solid shaft (without key) |
| Flange | EURO flange B10 |
| Protection EN 60529 | IP 55 |
| Torque | 1.5 Ncm |
| Rotor moment of inertia | 0.6 kgcmΒ² |
| Admitted shaft load | β€100 N axial, β€200 N radial |
| Material | Housing: stainless steel / plastic, Shaft: stainless steel |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 1.1 kg |
| Connection | Screw terminal connector, Cable 12.5 m |
| Operating temperature | -30...+130 Β°C |
| Rubber friction wheel | 37.5 mm |
Obtain a Quote for Baumer 1.5 Ncm Torque Tachogenerator GTF7.16L/460 KM982792G13 at economical prices. Specifications Overview for GTF7.16L/460 KM982792G13, reveals reversal tolerance of β€0.1 % and a linearity tolerance of β€0.15 %, ensuring high precision in performance. The temperature coefficient is Β± 0.05 %/K (open-circuit) in open-circuit conditions, while the calibration tolerance is Β±5 %, maintaining accuracy even under varying conditions. These encoders deliver 0.6 W (speed β₯5000 rpm), with an open-circuit voltage range of 60 V per 1000 rpm. The encoders feature a ΓΈ115 mm flange size and a torque of 1.5 Ncm, providing reliable operation. Constructed from durable Housing: stainless steel / plastic, Shaft: stainless steel, they ensure longevity Connection Screw terminal connector, Cable 12.5 m . Take the First Step with a Quote for your requirement of Baumer 1.5 Ncm Torque Tachogenerator. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
