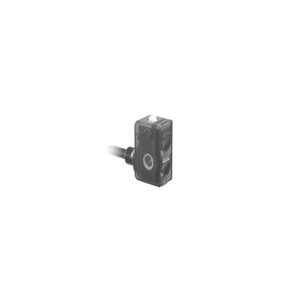

Baumer FZCK 07P6901 Photoelectric Sensor
The Banner FZCK 07P6901 Photoelectric Sensor offers a 8 mm diameter, 20 β¦ 150 mm sensing distance, PNP output circuit, and Cable rear side, 2 m connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O300 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | FZCK 07P6901 |
Baumer FZCK 07P6901 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 20 β¦ 150 mm |
| Light indicator | LED green |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 11 β¦ 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Cable rear side, 2 m |
| Protection class | IP 65 |
| Operating temperature | -20 β¦ +50 Β°C |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | LED yellow |
Reach Us by Email for Baumer Diffuse Sensor With Light Operate FZCK 07P6901 part no: 10151056 at Discounted Rates. Key Technical Features of FZCK 07P6901, 10151056 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 20 β¦ 150 mm. The sensor utilizes a Pulsed red LED with a wavelength of 660 nm, ensuring accurate and rapid response times of less than < 0.5 ms. It operates within a voltage supply range of 11 β¦ 30 VDC, offering Light / dark operate functionality with a PNP output circuit capable of handling up to 100 mA of output current. Measuring 8 mm in width and 16.2 mm in height, the compact Rectangular design is housed in durable Plastic (PMMA, MABS, PA) materials. The connection is made via a Cable rear side, 2 m. Navigate Your Needs with a Quote for your requirement of Baumer Diffuse Sensor With Light Operate. Our pricing and support are unrivaled, especially when compared to other Competitors.
