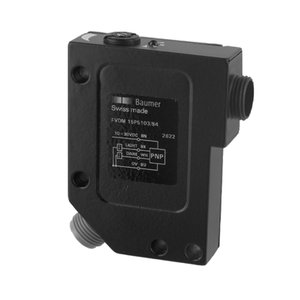

Baumer FSF 100A1002 Fiber Optic Sensor

Name: Baumer FVDM 15P5130 10234519
Brand: Baumer
SKU: FVDM 15P5130
Rating: 4.8 (4 reviews)

The Baumer FVDM 15P5130 Fiber Optic Sensor offers a operating principle, , and width diameter. Manufactured by Baumer under the Baumer Fiber Optic Sensor category, this model belongs to the FCE Series.

Datasheet

Brand	Baumer
Product Type	Fiber Optic Sensor
Model Number	FVDM 15P5130

Baumer FVDM 15P5130 Fiber Optic Sensor – Technical Specifications

Specification	Value
Operating temperature	-25 … +65 °C
Response time / release time	< 0.1 ms
Light source	Pulsed infrared diode
Light indicator	LED yellow
Wave length	880 nm
Current consumption typ.	50 mA
Voltage drop Vd	<1.8 VDC
Output function	Light / dark operate
Output circuit	PNP
Output current	200 mA
Short circuit protection	Yes
Reverse polarity protection	Yes
Width / diameter	15 mm
Height / length	60 mm
Depth	45 mm
Design	Rectangular
Housing material	Die-cast aluminum
Connection types	Cable 4 pin, 2 m
Protection class	IP 65

IndMALL Dealing Baumer Fiber Optic Sensors FVDM 15P5130 Article No: 10234519 with the special pricing. Technical Specs Summary of FVDM 15P5130, 10234519 include response and release time of < 0.1 ms ideal for high-speed applications. It uses an Pulsed infrared diode as the light source, with an LED yellow light indicator for easy status monitoring. Operating at a wavelength of 880 nm, the sensor ensures precise and consistent detection and the voltage drop remains under <1.8 VDC for efficient power usage. It supports both Light / dark operate output functions with an PNP output circuit and handles up to 200 mA output current. The compact rectangular design measures 15 mm in width, 60 mm in height, and 45 mm in depth. Made from durable Die-cast aluminum, it includes an Cable 4 pin, 2 m Match Your Needs with a Quote for your requirement of Fiber Optic Sensors FVDM 15P5130. Our pricing and support are unrivaled, especially when compared to other Distributors.
