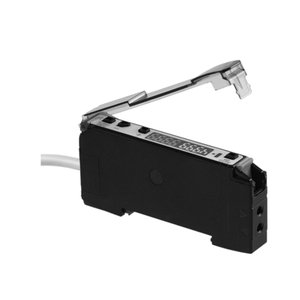

Baumer FSF 050A3020 Fiber Optic Sensor

Name: Baumer FVDK 10N66Z0 11214479
Brand: Baumer
SKU: FVDK 10N66Z0
Rating: 4.8 (4 reviews)

The Baumer FVDK 10N66Z0 Fiber Optic Sensor offers a operating principle, , and width diameter. Manufactured by Baumer under the Baumer Fiber Optic Sensor category, this model belongs to the FCE Series.

Datasheet

Brand	Baumer
Product Type	Fiber Optic Sensor
Model Number	FVDK 10N66Z0

Baumer FVDK 10N66Z0 Fiber Optic Sensor – Technical Specifications

Specification	Value
Operating temperature	-20 … +55 °C
Response time / release time	0.25 … 5 ms (adjustable)
Light source	Pulsed red LED
Light indicator	2 x 4-digit display
Wave length	660 nm
Voltage drop Vd	<2.1 VDC
Output function	Light / dark operate switchable
Output circuit	NPN
Output current	100 mA
Short circuit protection	Yes
Reverse polarity protection	Yes
Width / diameter	10 mm
Height / length	33.8 mm
Depth	70.2 mm
Design	Rectangular
Housing material	Polycarbonate/ABS
Connection types	Cable, L=2 m
Protection class	IP 40

Please speak to our Technical Engineer for Baumer Fiber Optic Sensors FVDK 10N66Z0 Article No: 11214479 at attractive prices. Technical Specs Summary of FVDK 10N66Z0, 11214479 include response and release time of 0.25 … 5 ms (adjustable) ideal for high-speed applications. It uses an Pulsed red LED as the light source, with an 2 x 4-digit display light indicator for easy status monitoring. Operating at a wavelength of 660 nmthe voltage drop remains under <2.1 VDC for efficient power usage. It supports both Light / dark operate switchable output functions with an NPN output circuit and handles up to 100 mA output current. The compact rectangular design measures 10 mm in width, 33.8 mm in height, and 70.2 mm in depth. Made from durable Polycarbonate/ABS, it includes an Cable, L=2 m cable connection. Match Your Needs with a Quote for your requirement of Fiber Optic Sensors FVDK 10N66Z0. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders)
