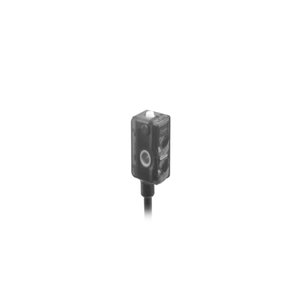

Baumer FSDK 07D9601 Photoelectric Sensor
The Baumer FSDK 07D9601 Photoelectric Sensor offers a Rectangular design, 2.5 m nominal range, Emitter, output, and Cable bottom side, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | FSDK 07D9601 |
Baumer FSDK 07D9601 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Actual range Sb | 2 m |
| Nominal range Sn | 2.5 m |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Current consumption typ. | 12 mA |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Cable bottom side, 2 m |
| Operating temperature | -20 β¦ +50 Β°C |
| Protection class | IP 65 |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
Ask for the Pricing of Baumer Cable Bottom Side Through-beam Sensor FSDK 07D9601 part no: 10151065 at unbeatable prices. Detailed Specifications of FSDK 07D9601, 10151065 feature Through beam sensor Model Type designed for precise object detection with a nominal range of 2.5 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA and a typical consumption of 12 mA. The compact Rectangular design features dimensions of 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (PMMA, MABS, PA) offering robustness for demanding applications. The sensor connects via a Cable bottom side, 2 m making it suitable for seamless integration into your system. With a Emitter. Now's the Time to Secure a Quote for your requirement of Baumer Cable Bottom Side Through-beam Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
