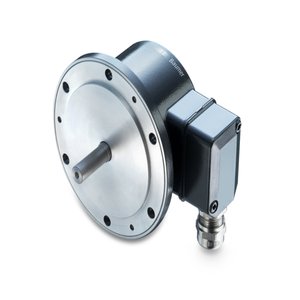

FS 90: Baumer Mechanical Centrifugal Switch
Technical Specifications of Baumer Mechanical Centrifugal Switch FS 90:
Spec | Value |
---|---|
Dimensions W x H x L | |
Switching outputs | 1 output, speed control |
Connection | Terminal box |
Protection EN 60529 | IP 55 |
Baumer Mechanical Centrifugal Switch FS 90 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | |
Consumption w/o load | |
Switching accuracy | ± 4 % (Δn = 2 rpm/s);, 20 % (Δn = 1500 rpm/s) |
Switching outputs | 1 output, speed control |
Output switching capacity | ≤6 A / 230 VAC, ≤1 A / 125 VDC, (EAC: <50 VAC / 75 VDC) |
Switching delay time | |
Inputs | |
Input signals | |
Dimensions W x H x L | |
Protection EN 60529 | IP 55 |
Range of switching speed (ns) | 850...4500 rpm (Δn = 2 rpm/s) |
Operating temperature | -40...+130 °C |
Connection | Terminal box |
Material | Housing: aluminium die-cast, Shaft: stainless steel |
Switching hysteresis | 40 % of switching speed |
Minimum switching current | 50 mA |
Size (flange) | ø115 mm |
Shaft type | ø11 mm solid shaft |
Flange | EURO flange B10 |
Speed (n) | ≤1.25 · ns |
Operating torque | ≤2 Ncm |
Rotor moment of inertia | 0.35 kgcm² |
Admitted shaft load | ≤150 N axial, ≤250 N radial |
Weight approx. | 900 g |
Mail Us for your needs in Baumer Mechanical Centrifugal Switch FS 90 with budget-friendly prices. The Main Technical Parameters of FS 90, inludce voltage supply of and power consumption of . This sensor boasts high switching accuracy of ± 4 % (Δn = 2 rpm/s);, 20 % (Δn = 1500 rpm/s) and features 1 output, speed control. The output switching capacity is ≤6 A / 230 VAC, ≤1 A / 125 VDC, (EAC: <50 VAC / 75 VDC). Rated for IP 55 protection under EN 60529 standards, it operates efficiently in temperatures ranging from -40...+130 °C. The sensor comes with a Terminal box for reliable connections, and the Housing: aluminium die-cast, Shaft: stainless steel, ensuring durability in harsh environments. Customize Your Experience with a Quote for your requirement of Baumer Mechanical Centrifugal Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
