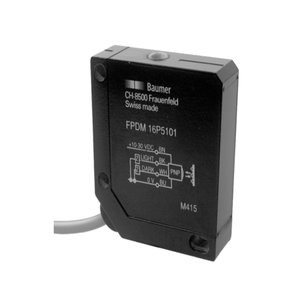

Baumer FPDM 16N5101 Photoelectric Sensor
The Baumer FPDM 16N5101 Photoelectric Sensor offers a Rectangular design, 8.5 m nominal range, 10 … 30 VDC supply voltage, NPN output, and Cable 4 pin, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | FPDM 16N5101 |
Baumer FPDM 16N5101 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed red LED |
| Actual range Sb | 7.3 m |
| Nominal range Sn | 8.5 m |
| Polarization filter | Yes |
| Alignment / soiled lens indicator | Flashing light indicator |
| Sensitivity adjustment | No |
| Wave length | 660 nm |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 36 mA |
| Current consumption typ. | 26 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 200 mA |
| Width / diameter | 15.4 mm |
| Height / length | 50 mm |
| Depth | 50 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Operating temperature | -25 … +65 °C |
| Protection class | IP 67 |
Mail Us for your needs in Baumer NPN Output Photoelectric Sensor With Cable FPDM 16N5101 part no: 10232266 with budget-friendly prices. The Main Technical Parameters of FPDM 16N5101, 10232266 inludce Retro-reflective sensor designed for precision detection with an actual range of 7.3 m and a nominal range of 8.5 m. The sensor features a Pulsed red LED light source with a wavelength of 660 nm, ensuring accurate performance with a response time of less than < 1 ms. It operates within a voltage supply range of 10 … 30 VDC, supporting both Light / dark operate functions through a NPN output circuit capable of handling up to 200 mA of output current. Measuring 15.4 mm in width and 50 mm in height, the sensor’s compact Rectangular design is housed in durable Die-cast zinc materials, making it ideal for industrial environments. The sensor connects via a Cable 4 pin, 2 m for reliable integration. Customize Your Experience with a Quote for your requirement of Baumer NPN Output Photoelectric Sensor With Cable. Experience the difference with our competitive pricing and superior support over other Suppliers.
