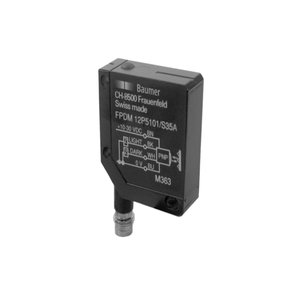

Baumer FPDM 12P5101/S35A Photoelectric Sensor
The Baumer FPDM 12P5101/S35A Photoelectric Sensor offers a Rectangular design, 5.2 m nominal range, 10 β¦ 30 VDC supply voltage, PNP output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | FPDM 12P5101/S35A |
Baumer FPDM 12P5101/S35A Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed red LED |
| Actual range Sb | 5 m |
| Nominal range Sn | 5.2 m |
| Polarization filter | Yes |
| Alignment / soiled lens indicator | Flashing light indicator |
| Sensitivity adjustment | No |
| Wave length | 660 nm |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP |
| Output current | 100 mA |
| Width / diameter | 12.4 mm |
| Height / length | 35 mm |
| Depth | 35 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Operating temperature | -25 β¦ +65 Β°C |
| Protection class | IP 67 |
Call us for Baumer Reflective Sensor With Response Time Reduction FPDM 12P5101/S35A part no: 10234192 at the best rates. Technical Attributes of FPDM 12P5101/S35A, 10234192 are Retro-reflective sensor designed for precision detection with an actual range of 5 m and a nominal range of 5.2 m. The sensor features a Pulsed red LED light source with a wavelength of 660 nm, ensuring accurate performance with a response time of less than < 1 ms. It operates within a voltage supply range of 10 β¦ 30 VDC, supporting both Light / dark operate functions through a PNP output circuit capable of handling up to 100 mA of output current. Measuring 12.4 mm in width and 35 mm in height, the sensorβs compact Rectangular design is housed in durable Die-cast zinc materials, making it ideal for industrial environments. The sensor connects via a Connector M8 4 pin for reliable integration. Pricing with a Quote for your requirement of Baumer Reflective Sensor With Response Time Reduction. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
