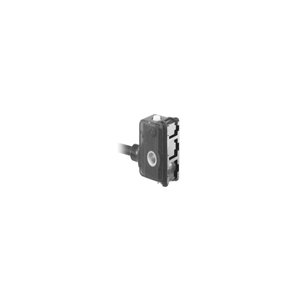

Baumer FPCK 07N6901/KS35A Photoelectric Sensor
The Baumer FPCK 07N6901/KS35A Photoelectric Sensor offers a Rectangular design, 0.8 m nominal range, 11 … 30 VDC supply voltage, NPN output, and Flylead connector M8 4 pin, L=200 mm connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Product | FPCK 07N6901/KS35A |
Baumer FPCK 07N6901/KS35A Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Light source | Pulsed red LED |
| Actual range Sb | 0.6 m |
| Nominal range Sn | 0.8 m |
| Polarization filter | Yes |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Wave length | 660 nm |
| Suppression of reciprocal influence | Yes |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 11 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Width / diameter | 8 mm |
| Height / length | 17.8 mm |
| Depth | 12.6 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Operating temperature | -20 … +50 °C |
| Protection class | IP 65 |
Get A Quote for Baumer Sensor With NPN Output Function FPCK 07N6901/KS35A part no: 10152093 at the best price. Here are the brief Technical Specifications of FPCK 07N6901/KS35A, 10152093 are Retro-reflective sensor designed for precision detection with an actual range of 0.6 m and a nominal range of 0.8 m. The sensor features a Pulsed red LED light source with a wavelength of 660 nm, ensuring accurate performance with a response time of less than < 0.5 ms. It operates within a voltage supply range of 11 … 30 VDC, supporting both Light / dark operate functions through a NPN output circuit capable of handling up to 100 mA of output current. Measuring 8 mm in width and 17.8 mm in height, the sensor’s compact Rectangular design is housed in durable Plastic (PMMA, MABS, PA) materials, making it ideal for industrial environments. The sensor connects via a Flylead connector M8 4 pin, L=200 mm for reliable integration. It's Time to get a Quote for your requirement of Baumer Sensor With NPN Output Function. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
