If youβre not fully sure about FNCK-07N6910-KS35A, taking a closer look at Sick Diffuse Sensor, Baumer Proximity Sensor and Baumer O200 Tr Zzzx 72Nv H006 often helps compare reliability, cost, and availability.

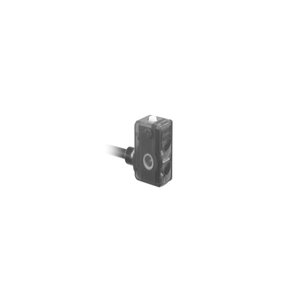

Baumer FNCK 07N6910/KS35A Photoelectric Sensor
The Banner FNCK 07N6910/KS35A Photoelectric Sensor offers a 8 mm diameter, Pulsed red LED light source, NPN output circuit, and Flylead connector M8 4 pin, L=200 mm connection type. Manufactured by Banner under the Banner Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Banner |
| Product Type | Photoelectric Sensor |
| Model Number | FNCK 07N6910/KS35A |
Baumer FNCK 07N6910/KS35A Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Light barrier |
| Background position Sde | 17 β¦ 45 mm |
| Scanning range Sa | 82% Sde |
| Output indicator | LED yellow |
| Sensing distance adjustment | Teach-in |
| Suppression of reciprocal influence | Yes |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Protection class | IP 65 |
| Operating temperature | -20 β¦ +50 Β°C |
Get A Quote for Baumer Reflective Sensor With Indicator FNCK 07N6910/KS35A part no: 11079282 at the best price. Here are the brief Technical Specifications of FNCK 07N6910/KS35A, 11079282 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 82% Sde with adjustable sensing distance Teach-in. It operates using a Pulsed red LED light source with a wave length of 660 nm. The voltage supply range is 10 β¦ 30 VDC, with a current consumption of 25 mA. The voltage drop (Vd) is less than <1.8 VDC, with Light / dark operate output functions. The output circuit is NPN, and the output current is rated at 100 mA. With a width of 8 mm and a height of 16.2 mm, the housing is made of durable Plastic (PMMA, MABS, PA). This sensor is equipped with a Flylead connector M8 4 pin, L=200 mm connection. It's Time to get a Quote for your requirement of Baumer Reflective Sensor With Indicator. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
