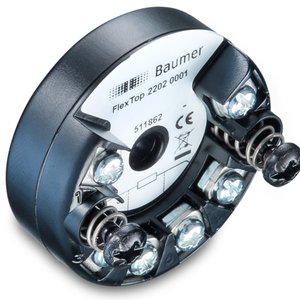

Baumer FlexTop 2202 Temperature Measurement
The Baumer FlexTop 2202 Temperature Measurement offers a 0.0 β¦ 30 s , programmable, 4 β¦ 20 mA , 2-wire, and 8 β¦ 35 V DC power supply. Manufactured by Baumer under the Baumer Temperature Measurement category, this model belongs to the VS Series.
| Brand | Baumer |
| Product Type | Temperature Measurement |
| Model Number | FlexTop 2202 |
Baumer FlexTop 2202 Temperature Measurement β Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection (EN 60529) | IP 40 |
| Humidity | < 98 % RH , condensing |
| Long-term test (transmitter) | IEC 770 6.3.2 |
| Vibration (sinusoidal) (EN 60068-2-6) | 1.6 mm p-p (2 β¦ 25 Hz), 4 g (25 β¦ 100 Hz), 1 octave / min. |
| Damping | 0.0 β¦ 30 s , programmable |
| Output signal | 4 β¦ 20 mA , 2-wire |
| Accuracy | < 0.1 % FSR |
| Temperature drift | < 0.003 %/K , typ., < 0.01 %/K , max. |
| Load resistance | R = (U - 8 V)/23 mA |
| Resolution | 12 bit |
| Up/Down scaling limits | 23 mA / 3.5 mA |
| Ripple immunity | 3 Vrms |
| Power-up time | β€ 10 s |
| Power supply | 8 β¦ 35 V DC |
| Reverse polarity protection | Yes |
| Effect of variations in supply voltage | < 0.01 %/V |
| TAG No. | 15 characters |
| EMC | EN 61000-6-2, EN 61000-6-3, EN 61326-1 |
| Namur | NE21 |
| Explosion protection | ATEX II 1 G Ex ia IIC T5/T6, ATEX II 3 G Ex ec IIC T5 |
IndMALL Automation Dealing offers Baumer Temperature Measurement FlexTop 2202 at unbeatable prices. The Main Technical Parameters of FlexTop 2202, feature transmitter is rated IP 40 for protection and operates efficiently in humidity levels below < 98 % RH , condensing. It meets IEC 770 6.3.2 long-term test standards, ensuring long-lasting performance. Built to withstand industrial conditions, it endures vibrations of 1.6 mm p-p (2 β¦ 25 Hz), 4 g (25 β¦ 100 Hz), 1 octave / min., with a 1 octave/min sweep per IEC 770 6.3.2 standards. The damping is 0.0 β¦ 30 s , programmable, providing precise control. The output signal is an 4 β¦ 20 mA , 2-wire configuration, ensuring stable and accurate transmission. With an accuracy of < 0.1 % FSR and temperature drift of < 0.003 %/K , typ., < 0.01 %/K , max., it maintains exceptional precision. The load resistance follows R = (U - 8 V)/23 mA for optimal operation. Take the First Step with a Quote for your requirement of Temperature Measurement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
