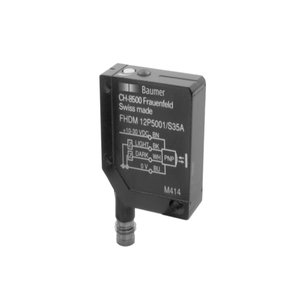

Baumer FHDM 12N5001/S35A Photoelectric Sensor
The Baumer FHDM 12N5001/S35A Photoelectric Sensor offers a Rectangular design, 15 β¦ 300 mm sensing distance, NPN output, and Connector M8 4 pin connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the Background Suppression type.
| Sensing distance Tw | 15 β¦ 300 mm |
| Output circuit | NPN |
| Connection types | Connector M8 4 pin |
Baumer FHDM 12N5001/S35A Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Background suppression |
| Sensing distance Tw | 15 β¦ 300 mm |
| Sensing distance adjustment | Mechanical, 5 turn |
| Suppression of reciprocal influence | Yes |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 35 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 12.4 mm |
| Height / length | 35 mm |
| Depth | 35 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 β¦ +65 Β°C |
| Light indicator | LED yellow |
Please speak to our Technical Engineer for Baumer Precision Sensor For Industrial Applications FHDM 12N5001/S35A part no: 10234168 at attractive prices. Technical Specs Summary of FHDM 12N5001/S35A, 10234168 includes Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 15 β¦ 300 mm. The sensor features Mechanical, 5 turn adjustment for flexible setup and utilizes an Pulsed red LED light source with a wavelength of 660 nm. It boasts a fast response time of less than < 1 ms, and operates within a voltage supply range of 10 β¦ 30 VDC, with a typical current consumption of 25 mA. The output function supports Light / dark operate with a NPN output circuit and can handle an output current of up to 100 mA. Measuring 12.4 mm in width, 35 mm in height, and 35 mm in depth, this compact Rectangular sensor is connected via a Connector M8 4 pin. Match Your Needs with a Quote for your requirement of Baumer Precision Sensor For Industrial Applications. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
