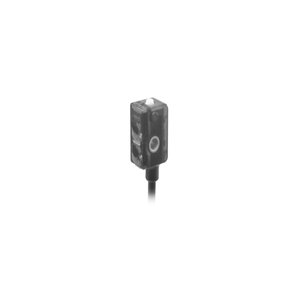

Baumer FEDK 07N6901 Photoelectric Sensor
The Baumer FEDK 07N6901 Photoelectric Sensor offers a Rectangular design, 2.5 m nominal range, Receiver, NPN output, and Cable bottom side, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | FEDK 07N6901 |
Baumer FEDK 07N6901 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 2 m |
| Nominal range Sn | 2.5 m |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Cable bottom side, 2 m |
| Operating temperature | -20 β¦ +50 Β°C |
| Protection class | IP 65 |
| Light indicator | LED green |
Ask for the Pricing of Baumer Rectangular Light Operate Sensor FEDK 07N6901 part no: 10152096 at unbeatable prices. Detailed Specifications of FEDK 07N6901, 10152096 feature Through beam sensor Model Type designed for precise object detection with a nominal range of 2.5 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA and a typical consumption of 20 mA. The compact Rectangular design features dimensions of 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (PMMA, MABS, PA) offering robustness for demanding applications. The sensor connects via a Cable bottom side, 2 m making it suitable for seamless integration into your system. With a Receiver. Now's the Time to Secure a Quote for your requirement of Baumer Rectangular Light Operate Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
