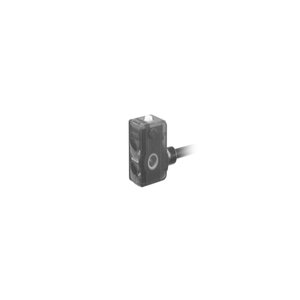

Baumer FECK 07N6901 Photoelectric Sensor
The Baumer FECK 07N6901 Photoelectric Sensor offers a Rectangular design, 2.5 m nominal range, Receiver, NPN output, and Cable rear side, 2 m connection. Manufactured by Baumer under the Baumer Photoelectric Sensor category, this model belongs to the O200 Series.
| Brand | Baumer |
| Product Type | Photoelectric Sensor |
| Model Number | FECK 07N6901 |
Baumer FECK 07N6901 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 2 m |
| Nominal range Sn | 2.5 m |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Current consumption typ. | 20 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Front (optics) | PMMA |
| Connection types | Cable rear side, 2 m |
| Operating temperature | -20 β¦ +50 Β°C |
| Protection class | IP 65 |
| Light indicator | LED green |
Obtain a Quote for Baumer Through Beam Sensor Light Operate FECK 07N6901 part no: 10152095 at economical prices. Specifications Overview for FECK 07N6901, 10152095 reveals Through beam sensor Model Type designed for precise object detection with a nominal range of 2.5 m. This sensor operates on a voltage supply range of 10 β¦ 30 VDC, with a maximum current consumption of 20 mA and a typical consumption of 20 mA. The compact Rectangular design features dimensions of 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (PMMA, MABS, PA) offering robustness for demanding applications. The sensor connects via a Cable rear side, 2 m making it suitable for seamless integration into your system. With a Receiver. Take the First Step with a Quote for your requirement of Baumer Through Beam Sensor Light Operate. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
