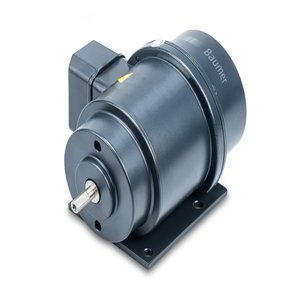

FAPY 50: 11055497 - Baumer Housing Foot B3 Tachogenerators
Technical Specifications of Baumer Housing Foot B3 Tachogenerators FAPY 50 11055497:
| Size Flange | 3.88" |
| Shaft Type | ø5/16", solid shaft with flat |
| Connection | Terminal box with 1/2" -14 NPT cable entry |
Baumer Housing Foot B3 Tachogenerators FAPY 50 11055497 Technical Specifications:
| Specification | Value |
|---|---|
| Reversal tolerance | ≤0.1 % |
| Linearity tolerance | ≤0.15 % |
| Temperature coefficient | ± 0.05 %/K (open-circuit) |
| Isolation class | B |
| Calibration tolerance | ±1 % |
| Climatic test | Humid heat, constant (IEC 60068-2-3, Ca) |
| Armature-circuit time-constant | <75 µs |
| Open-circuit voltage | 50 V per 1000 rpm |
| Size (flange) | 3.88" |
| Shaft type | ø5/16", solid shaft with flat |
| Flange | Housing foot B3 |
| Protection EN 60529 | IP 55 |
| Torque | 1.5 Ncm |
| Rotor moment of inertia | 1.1 kgcm² |
| Admitted shaft load | ≤60 N axial, ≤80 N radial |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Resistance | IEC 60068-2-6, Vibration 10 g, 10-2000 Hz, IEC 60068-2-27, Shock 300 g, 1 ms |
| Weight approx. | 2.6 kg |
| Connection | Terminal box with 1/2" -14 NPT cable entry |
| Operating temperature | -22...+266 °F |
| Operating speed | ≤10000 rpm |
Call us for Baumer Housing Foot B3 Tachogenerators FAPY 50 at the best rates. Technical Attributes of FAPY 50, are reversal tolerance of ≤0.1 % and a linearity tolerance of ≤0.15 %, ensuring high precision in performance. The temperature coefficient is ± 0.05 %/K (open-circuit) in open-circuit conditions, while the calibration tolerance is ±1 %, maintaining accuracy even under varying conditions. These encoders deliver , with an open-circuit voltage range of 50 V per 1000 rpm. The encoders feature a 3.88" flange size and a torque of 1.5 Ncm, providing reliable operation. Constructed from durable Housing: aluminium die-cast, Shaft: stainless steel, they ensure longevity Connection Terminal box with 1/2" -14 NPT cable entry . Exclusive Pricing with a Quote for your requirement of Baumer Housing Foot B3 Tachogenerators. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
