ES 93 - Baumer Electronic Speed Monitoring

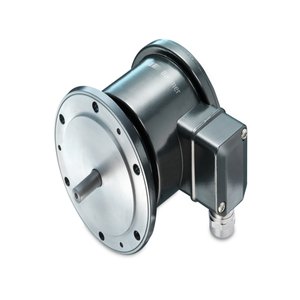

Baumer ES 93 Speed Switch
| Brand | Baumer |
| Product Type | Speed Switch |
| Model Number | ES 93 |
Baumer Electronic Speed Monitoring ES 93 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 12 VDC ±10 % |
| Consumption w/o load | ≤5 mA |
| Switching accuracy | ± 4 % (≤1500 rpm), ± 2 % (>1500 rpm) |
| Switching outputs | 3 outputs, speed control |
| Switching delay time | ≤40 ms |
| Protection EN 60529 | IP 55 |
| Range of switching speed (ns) | 200...5000 rpm |
| Operating temperature | -20...+85 °C |
| Connection | Terminal box |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Size (flange) | ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Flange | EURO flange B10 |
| Speed (n) | ≤5000 rpm |
| Operating torque | ≤2 Ncm |
| Rotor moment of inertia | 0.125 kgcm² |
| Admitted shaft load | ≤150 N axial, ≤250 N radial |
| Weight approx. | 1.3 kg |
Call us for Baumer Electronic Speed Monitoring ES 93 at the best rates. Technical Attributes of ES 93, are voltage supply of 12 VDC ±10 % and power consumption of ≤5 mA. This sensor boasts high switching accuracy of ± 4 % (≤1500 rpm), ± 2 % (>1500 rpm) and features 3 outputs, speed control. The output switching capacity is . Rated for IP 55 protection under EN 60529 standards, it operates efficiently in temperatures ranging from -20...+85 °C. The sensor comes with a Terminal box for reliable connections, and the Housing: aluminium die-cast, Shaft: stainless steel, ensuring durability in harsh environments. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Electronic Speed Monitoring. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
