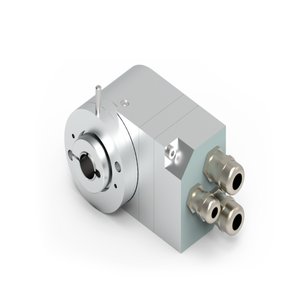

Baumer EN580C.ML-T$12.GH2PB.21160.H/MTQ003 Rotary Encoder
Technical Specifications of Baumer 16 Bit Encoder Multiturn EN580C.ML-T$12.GH2PB.21160.H/MTQ003 11268050:
| Voltage supply | 8...30 VDC |
| Interface | Profibus-DPV0 |
| Sensing method | Optical |
| Connection | Cable gland |
Baumer EN580C.ML-T$12.GH2PB.21160.H/MTQ003 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€100 mA (24 VDC) |
| Interface | Profibus-DPV0 |
| Function | Multiturn |
| Absolute accuracy | Β±0.01 Β° |
| Sensing method | Optical |
| Status indicator | DUO-LED integrated in bus cover |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (without shaft seal) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting acceleration | β€1000 U/sΒ² |
| Starting torque | β€0.04 Nm (+25 Β°C, IP 54) |
| Material | Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms |
| Weight approx. | 500 g |
| Connection | Cable gland |
IndMALL Offers Baumer 16 Bit Encoder Multiturn EN580C.ML-T$12.GH2PB.21160.H/MTQ003 part no: 11268050 at economical Choices. Product Tech Specs of EN580C.ML-T$12.GH2PB.21160.H/MTQ003, 11268050 include voltage supply of 8...30 VDC. These encoders feature the Profibus-DPV0 interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Cable gland, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer 16 Bit Encoder Multiturn. Trust in our superior pricing and more dedicated support over other Distributors.
