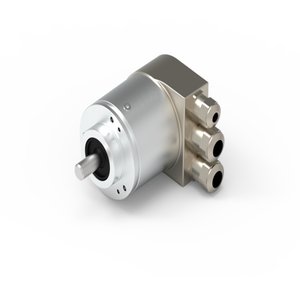

Baumer EN580C.ML-SC10.HH2PB.21160.H Rotary Encoder
Technical Specifications of Baumer DUO-LED Integrated In Bus Cover EN580C.ML-SC10.HH2PB.21160.H 11258715:
| Voltage supply | 8...30 VDC |
| Interface | Profibus-DPV0 |
| Sensing method | Optical |
| Connection | Cable gland |
Baumer EN580C.ML-SC10.HH2PB.21160.H Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤100 mA (24 VDC) |
| Interface | Profibus-DPV0 |
| Function | Multiturn |
| Absolute accuracy | ±0.01 ° |
| Sensing method | Optical |
| Status indicator | DUO-LED integrated in bus cover |
| Size (flange) | ø58 mm |
| Shaft type | ø10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 65 / IP 67 (with shaft seal) |
| Operating speed | ≤6000 rpm (+25 °C) |
| Starting acceleration | ≤1000 U/s² |
| Starting torque | ≤0.04 Nm (+25 °C, IP 65 / IP 67) |
| Material | Housing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel |
| Operating temperature | -25...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms |
| Weight approx. | 550 g |
| Connection | Cable gland |
| Flange | Clamping flange |
| Admitted shaft load | ≤40 N axial, ≤80 N radial |
IndMALL Offers Baumer DUO-LED Integrated In Bus Cover EN580C.ML-SC10.HH2PB.21160.H part no: 11258715 at economical Choices. Product Tech Specs of EN580C.ML-SC10.HH2PB.21160.H, 11258715 include voltage supply of 8...30 VDC. These encoders feature the Profibus-DPV0 interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel, provides robust protection. The connection is facilitated by Cable gland, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer DUO-LED Integrated In Bus Cover. Trust in our superior pricing and more dedicated support over other Distributors.
