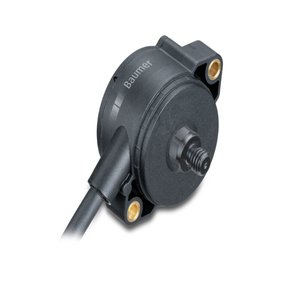

Baumer EB360.SC-C.S012.V4GJN.13000N Rotary Encoder
The Baumer EB360.SC-C.S012.V4GJN.13000N Rotary Encoder offers a ΓΈ36 mm size, Flylead connector M12, 8-pin, length 300 mm connection. Manufactured by Baumer under the Baumer Rotary Encoder category, this model belongs to the eb360 series.
| Brand | Baumer |
| Product Type | Rotary Encoder |
| Model Number | EB360.SC-C.S012.V4GJN.13000N |
Baumer EB360.SC-C.S012.V4GJN.13000N Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 4.5...30 VDC |
| Consumption typ. | 60 mA (5 VDC, w/o load), 20 mA (24 VDC, w/o load) |
| Initializing time | β€ 170 ms after power on |
| Interface | SSI |
| Function | Singleturn |
| Steps per revolution | 8192 / 13 bit |
| Absolute accuracy | Β±0.3 Β° (+20 Β±15 Β°C), Β±0.5 Β° (-40...+85 Β°C) |
| Sensing method | Magnetic |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Size (flange) | ΓΈ36 mm |
| Protection EN 60529 | IP 67 (sensor housing) |
| Operating speed | β€6000 rpm |
| Working distance | 0.9 Β±0.8 mm (axial), β€ 0.3 mm (radial) |
| Material | Housing: PA10T / GF30, Cable sheath: PUR, Magnet rotor: stainless steel |
| Operating temperature | -40...+85 Β°C (see general information) |
| Relative humidity | 95 % |
| Resistance | EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 500 g, 1 ms |
| Weight approx. | 100 g |
| Connection | Flylead connector M12, 8-pin, length 300 mm |
IndMALL Automation Dealing offers Baumer Magnetic Singleturn Encoder EB360.SC-C.S012.V4GJN.13000N part no: 11266753 at attractive prices. Key Technical Features of EB360.SC-C.S012.V4GJN.13000N, 11266753 are voltage supply of 4.5...30 VDC and output stages including SSI data: Linedriver RS422 options. The encoders have an IP 67 (sensor housing) protection rating according to EN 60529, ensuring robust performance in harsh environments. The working distance is ,0.9 Β±0.8 mm (axial), β€ 0.3 mm (radial). The Housing: PA10T / GF30, Cable sheath: PUR, Magnet rotor: stainless steel. Connection options include Flylead connector M12, 8-pin, length 300 mm for flexible installation. Operating temperature ranges from -40...+85 Β°C (see general information) making these encoders suitable for extreme conditions. Navigate Your Needs with a Quote for your requirement of Baumer Magnetic Singleturn Encoder. We excel in offering more cost-effective and supportive solutions than other Competitors.
