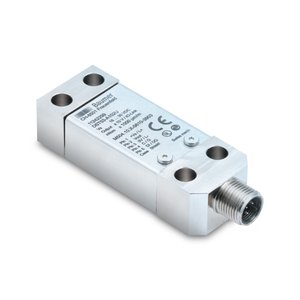

Baumer DST53-A202P , 11244541: Miniaturized Strain Sensor
Technical Specifications of Baumer Miniaturized Strain Sensor DST53-A202P:
| Nominal Strain | 0 ... 2000 μm/m |
| Dimensions | 26 mm x 17 mm x 70 mm |
| Electrical Connection | M12, 5 pin, male |
| Supply Voltage | 0.5 ... 12 VDC |
Baumer Miniaturized Strain Sensor DST53-A202P 11244541 Technical Specifications
| Specification | Value |
|---|---|
| Nominal strain | 0 ... 2000 μm/m |
| Non-linearity | < 0.3 % |
| Repeatability | < 0.1 % |
| Mechanical mounting | 4 x M6 screws |
| Dimensions | 26 mm x 17 mm x 70 mm |
| Fatigue strength | >10 Mio cycles at 0...100% FS |
| Sensor stiffness | 130 N @ 2000 µm/m |
| Weight | 135 g |
| Material sensor body | 1.7225, chemically nickel plated |
| Material housing | Stainless steel, 1.4301 |
| Compensated for thermal expansion coefficient | 11.1 * 10-6 1/K |
| Electrical connection | M12, 5 pin, male |
| Operating temperature range | -40 °C ... 85 °C |
| Storage temperature range | -40 °C ... 85 °C |
| Protection class EN 60529, ISO20653 | IP 65 |
| Vibration IEC 60068-2-6 | 10 … 57 Hz: 1.5 mm p-p, 58 ... 2000 Hz: 10 g |
| Random IEC 60068-2-64 | 20 ... 1000 Hz: 0.1 g²/Hz |
| Shock IEC 60068-2-27 | 50 g / 11 ms, 100 g / 6 ms |
| Output signal | mV/V |
| Signal polarity positive | Tension |
| Nominal sensitivity | 1.2 mV/V |
| Bridge resistance | 350 Ω |
| Supply voltage | 0.5 ... 12 VDC |
| Overload | 150 % |
| Current consumption | < 40 mA |
| Reverse polarity protection | Yes |
| Short circuit protection | Yes |
| Conformity | CE, UL |
