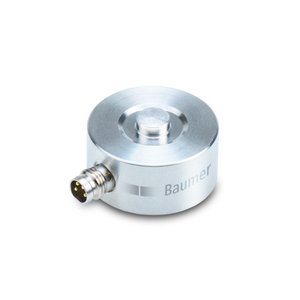

Baumer DLM30-BU.102.CP3.C4 Force Sensor
The Baumer DLM30-BU.102.CP3.C4 Force Sensor offers a 0 ... 1000 Nmeasuring range, Button type, and M8, 4 pin, male connection. Manufactured by Baumer under the Baumer Force Sensor category, this model belongs to the DLM Series.
| Brand | Baumer |
| Product Type | Force Sensor |
| Model Number | DLM30-BU.102.CP3.C4 |
Baumer DLM30-BU.102.CP3.C4 Force Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 0 ... 1000 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Button |
| Mechanical mounting | 4 x M3 screws / loose |
| Dimensions | ร 31.8 mm x 18 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0...100% FS |
| Nominal displacement | 18 ฮผm |
| Weight | 65 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M8, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 ฮฉ |
| Supply voltage | 0.5 ... 12 VDC |
| Signal polarity positive | Compression |
| Operating temperature range | -40 ... 85 ยฐC |
| Storage temperature range | -40 ... 85 ยฐC |
| Protection class EN 60529, ISO20653 | IP 68 |
Get A Quote for Baumer Force Sensors DLM30-BU.102.CP3.C4 Article No: 11217615 at the best price. Here are the brief Technical Specifications of DLM30-BU.102.CP3.C4, 11217615 are range of 0 ... 1000 N with non-linearity < 0.2 % and repeatability < 0.1 %, ensuring exceptional accuracy. The temperature effect on zero is < 0.2 % / 10K, with a zero point deviation of 10 Mio cycles at 0...100% FS. It's Time to get a Quote for your requirement of Force Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
