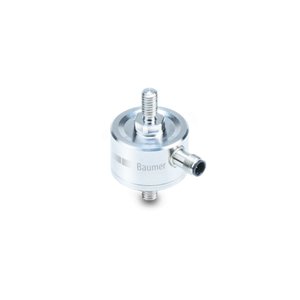

Baumer DLM20-IN.201.TP3.M4 Force Sensor
The Baumer DLM20-IN.201.TP3.M4 Force Sensor offers a 0 ... 200 Nmeasuring range, Inline type, and M5, 4 pin, male connection. Manufactured by Baumer under the Baumer Force Sensor category, this model belongs to the DLM Series.
| Brand | Baumer |
| Product Type | Force Sensor |
| Model Number | DLM20-IN.201.TP3.M4 |
Baumer DLM20-IN.201.TP3.M4 Force Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 0 ... 200 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Inline |
| Mechanical mounting | M4 thread / M4 thread |
| Dimensions | Γ 19 mm x 16 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0...100% FS |
| Nominal displacement | 15 ΞΌm |
| Weight | 22 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M5, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 Ξ© |
| Supply voltage | 0.5 ... 12 VDC |
| Signal polarity positive | Tension |
| Operating temperature range | -40 ... 85 Β°C |
| Storage temperature range | -40 ... 85 Β°C |
| Protection class EN 60529, ISO20653 | IP 67 |
Call us for Baumer Force Sensors DLM20-IN.201.TP3.M4 Article No: 11217610 at the best rates. Technical Attributes of DLM20-IN.201.TP3.M4, 11217610 are range of 0 ... 200 N with non-linearity < 0.2 % and repeatability < 0.1 %, ensuring exceptional accuracy. The temperature effect on zero is < 0.2 % / 10K, with a zero point deviation of 10 Mio cycles at 0...100% FS. Unlock Exclusive Pricing with a Quote for your requirement of Force Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
