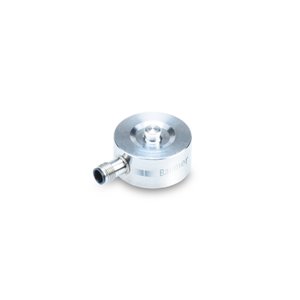

Baumer DLM20-BU.501.CP3.M4 Force Sensor
The Baumer DLM20-BU.501.CP3.M4 Force Sensor offers a 0 ... 500 Nmeasuring range, Button type, and M5, 4 pin, male connection. Manufactured by Baumer under the Baumer Force Sensor category, this model belongs to the DLM Series.
| Brand | Baumer |
| Product Type | Force Sensor |
| Model Number | DLM20-BU.501.CP3.M4 |
Baumer DLM20-BU.501.CP3.M4 Force Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 0 ... 500 N |
| Non-linearity | < 0.2 % |
| Repeatability | < 0.1 % |
| Temperature effect zero | < 0.2 % / 10K |
| Zero point deviation | < 20 % |
| Type | Button |
| Mechanical mounting | 4 x M2 screws / loose |
| Dimensions | Ø 19 mm x 11 mm |
| Overload | 150 % |
| Breaking load | 200 % |
| Fatigue strength | >10 Mio cycles at 0...100% FS |
| Nominal displacement | 13 μm |
| Weight | 14 g |
| Material sensor body | Stainless steel, 1.4542 |
| Electrical connection | M5, 4 pin, male |
| Nominal sensitivity | 1 mV/V |
| Bridge resistance | 1000 Ω |
| Supply voltage | 0.5 ... 12 VDC |
| Signal polarity positive | Compression |
| Operating temperature range | -40 ... 85 °C |
| Storage temperature range | -40 ... 85 °C |
| Protection class EN 60529, ISO20653 | IP 67 |
IndMALL Automation Dealing offers Baumer Force Sensors DLM20-BU.501.CP3.M4 Article No: 11217578 at unbeatable prices. The Main Technical Parameters of DLM20-BU.501.CP3.M4, 11217578 feature range of 0 ... 500 N with non-linearity < 0.2 % and repeatability < 0.1 %, ensuring exceptional accuracy. The temperature effect on zero is < 0.2 % / 10K, with a zero point deviation of 10 Mio cycles at 0...100% FS. Take the First Step with a Quote for your requirement of Force Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
