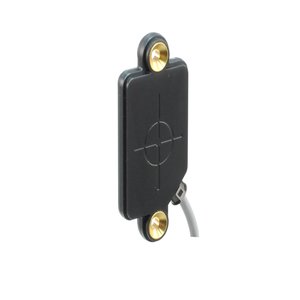

Baumer CFDK 25G3125/LN4: Capacitive Proximity Sensors
Technical Specifications of Baumer Capacitive Proximity Sensor CFDK 25G3125/LN4:
| Nominal sensing distance Sn | 8 mm |
| Mounting type | Flush |
| Output circuit | Push-pull |
| Connection types | Cable PVC 3 x 0,14, 2 m |
Baumer Capacitive Proximity Sensors CFDK 25G3125/LN4 Technical Specifications
| Specification | Value |
|---|
| Nominal sensing distance Sn | 8 mm |
| Mounting type | Flush |
| GND electrode | No |
| Temperature drift | Β± 20 % |
| Sensitivity adjustment | No |
| Output indicator | LED red |
| Measurement type | Contactless |
| Detection of non-conductive media | Yes |
| Voltage supply range +Vs | 10 β¦ 30 VDC |
| Current consumption max. (no load) | 15 mA |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Voltage drop Vd | <3 VDC |
| Switching frequency | 35 Hz |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Rectangular |
| Housing material | PA 12 |
| Dimension | 25 mm |
| Housing length | 52.4 mm |
| Connection types | Cable PVC 3 x 0,14, 2 m |
| Operating temperature | -25 β¦ +75 Β°C |
| Protection class | IP 65 |
