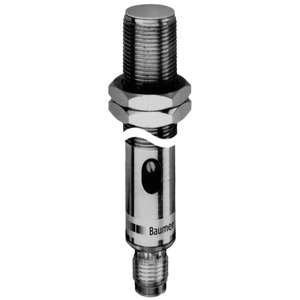

Baumer CFAM 18N1600/S14: Capacitive Proximity Sensors
Technical Specifications of Baumer Capacitive Proximity Sensor CFAM 18N1600/S14:
| Nominal sensing distance Sn | 8 mm |
| Mounting type | Flush |
| Output circuit | NPN make function (NO) |
| Connection types | Connector M12 |
Baumer Capacitive Proximity Sensors CFAM 18N1600/S14 Technical Specifications
| Specification | Value |
|---|---|
| Nominal sensing distance Sn | 8 mm |
| Mounting type | Flush |
| GND electrode | Yes |
| Temperature drift | ± 15 % (+10 ... +70 °C) |
| Sensitivity adjustment | Potentiometer, 12 turn |
| Output indicator | LED yellow |
| Measurement type | Contactless |
| Detection of non-conductive media | Yes |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | NPN make function (NO) |
| Output current | 200 mA |
| Voltage drop Vd | <1.5 VDC |
| Switching frequency | 50 Hz |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 78.5 mm |
| Connection types | Connector M12 |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 65 |
