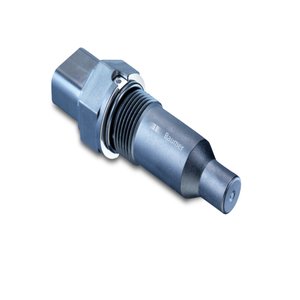

Baumer CFAK 22U9500/AMP: Capacitive Proximity Sensors
Technical Specifications of Baumer Capacitive Proximity Sensor CFAK 22U9500/AMP:
| Nominal sensing distance Sn | - |
| Mounting type | Non-flush |
| Output circuit | Voltage output |
| Connection types | Connector AMPSEAL 16 3 pin |
Baumer Capacitive Proximity Sensors CFAK 22U9500/AMP Technical Specifications
| Specification | Value |
|---|---|
| Nominal sensing distance Sn | - |
| Mounting type | Non-flush |
| GND electrode | - |
| Temperature drift | - |
| Sensitivity adjustment | - |
| Output indicator | - |
| Measurement type | Contact with medium |
| Detection of non-conductive media | No |
| Voltage supply range +Vs | 4.75 β¦ 5.25 VDC |
| Current consumption max. (no load) | 42 mA |
| Output circuit | Voltage output |
| Output current | - |
| Voltage drop Vd | - |
| Switching frequency | - |
| Short circuit protection | Yes |
| Reverse polarity protection | No |
| Design | Cylindrical threaded |
| Housing material | Polyamid (glass fiber reinforced), aluminium |
| Dimension | 22 mm |
| Housing length | 87 mm |
| Connection types | Connector AMPSEAL 16 3 pin |
| Operating temperature | -40 β¦ +85 Β°C |
| Protection class | IP 69K |
