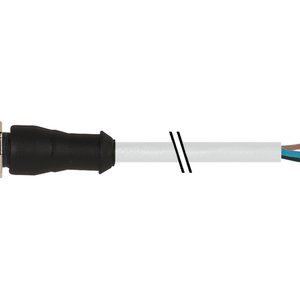

Baumer CAM12.A3-11249581 , 11249581: Cables and Plugs
Technical Specifications of Baumer CAM12.A3-11249581:
| Cable length | 1500 cm |
| Cable diameter | 4.6 mm ± 5% |
| Bending radius (fixed) | min. 5 × outer diameter |
Baumer Cables and Plugs CAM12.A3-11249581 11249581 Technical Specifications
| Specification | Value |
|---|---|
| Cable length | 1500 cm |
| Shielded | No |
| External sheath: Material | PVC |
| External sheath: Color | Gray |
| Cable diameter | 4.6 mm ± 5% |
| Wire cross section | 0.34 mm² |
| Cable: Temperature range (mobile) | - 5 ...+ 80 °C |
| Cable: Temperature range (fixed) | - 30 ...+ 80 °C |
| Bending radius (fixed) | min. 5 × outer diameter |
| Bending radius (mobile) | min. 10 × outer diameter |
| Cable weight | approx. 34.1 g/m |
| Labeling sleeve side B | Yes |
| Stripping length | 20 mm |
| Conductor structure | 19 × 0.15 mm |
| AWG | 22 |
| Number of wires | 3 |
| Number and diameter of wires | 3x0.34 |
| Cable type | 1 |
| Nominal voltage | 300 V AC |
| Paired stranding | No |
| Single wire diameter | 0.15 mm |
| Total stranding | 3 wires strand |
| Wire processing | No |
| Wire diameter incl. isolation | 1.25 mm ± 5% |
| Operating voltage | max. 250 V AC/DC |
| Contact resistance | max. 30 mOhm |
| Operating current per contact | max. 4 A |
| Head A: Degree of protection | IP65, IP66K, IP67 |
| Temperature range (mobile) | - 5 ...+ 80 °C |
| Temperature range (fixed) | - 25 ...+ 80 °C |
| Dragchain capable | No |
