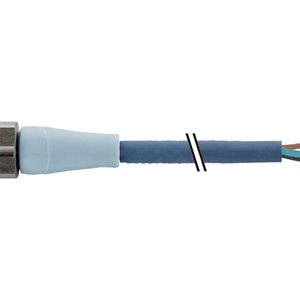

Baumer CAM12.A3-11230921 , 11230921: Cables and Plugs
Technical Specifications of Baumer CAM12.A3-11230921:
| Cable length | 1000 cm |
| Cable diameter | 5.2 mm ± 5% |
| Operating voltage (only UL listed) | 30 V AC/DC |
| Bending radius (fixed) | min. 5 × outer diameter |
Baumer Cables and Plugs CAM12.A3-11230921 11230921 Technical Specifications
| Specification | Value |
|---|---|
| Cable length | 1000 cm |
| Length tolerance | ± 15 cm |
| Shielded | Yes |
| External sheath: Material | TPE-S |
| External sheath: Color | Blue |
| Cable diameter | 5.2 mm ± 5% |
| Wire cross section | 0.34 mm² |
| Cable: Temperature range (mobile) | - 25 ...+ 105 °C |
| Cable: Temperature range (fixed) | - 40 ...+ 105 °C |
| Operating voltage (only UL listed) | 30 V AC/DC |
| Bending radius (fixed) | min. 5 × outer diameter |
| Bending radius (mobile) | min. 10 × outer diameter |
| Cable weight | approx. 37.4 g/m |
| Shielding: Material | Copper, tinned |
| Labeling sleeve side B | No |
| Stripping length | 20 mm |
| Conductor structure | 42 × 0.1 mm |
| AWG | 22 |
| Shielding: Covering | approx. 85 % |
| Number of wires | 3 |
| Number and diameter of wires | 3x0.34 |
| Nominal voltage | 300 V AC |
| No. of torsion cycles | approx. 2000000 Cycles |
| Paired stranding | No |
| Single wire diameter | 0.1 mm |
| Torsion stress in ° | ± 180 °/m |
| Total stranding | 3 wires strand |
| Travel speed (C-track) | max. 3 m/s |
| Traversing path (horizontal) | max. 10 m |
| Wire processing | No |
| Wire diameter incl. isolation | 1.27 mm ± 5% |
| Operating voltage | max. 60 V AC/DC |
| Contact resistance | max. 30 mOhm |
| Operating current per contact | max. 4 A |
| Head A: Degree of protection | IP65, IP68, IP69K |
| Temperature range (mobile) | - 25 ...+ 105 °C |
| Temperature range (fixed) | - 40 ...+ 105 °C |
| Dragchain capable | Yes |
