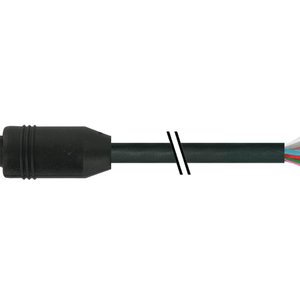

Baumer CAM12.A12-11232656 , 11232656: Cables and Plugs
Technical Specifications of Baumer CAM12.A12-11232656:
| Cable length | 1500 cm |
| Cable diameter | 6 mm ± 5% |
| Bending radius (fixed) | min. 5 × outer diameter |
Baumer Cables and Plugs CAM12.A12-11232656 11232656 Technical Specifications
| Specification | Value |
|---|---|
| Cable length | 1500 cm |
| Length tolerance | ± 22.5 cm |
| Shielded | No |
| External sheath: Material | PVC |
| External sheath: Color | Black |
| Cable diameter | 6 mm ± 5% |
| Wire cross section | 0.14 mm² |
| Cable: Temperature range (mobile) | - 5 ...+ 80 °C |
| Cable: Temperature range (fixed) | - 30 ...+ 80 °C |
| Bending radius (fixed) | min. 5 × outer diameter |
| Bending radius (mobile) | min. 10 × outer diameter |
| Cable weight | approx. 55 g/m |
| Labeling sleeve side B | Yes |
| Stripping length | 80 mm |
| Conductor structure | 18 × 0.1 mm |
| AWG | 26 |
| Number of wires | 12 |
| Number and diameter of wires | 12x0.14 |
| Cable type | 1 |
| Nominal voltage | 300 V AC |
| Paired stranding | No |
| Single wire diameter | 0.1 mm |
| Total stranding | 3 wires strand, above that 9 wires strand |
| Wire processing | No |
| Wire diameter incl. isolation | 1.05 mm ± 5% |
| Operating voltage | max. 30 V AC/DC 0 |
| Contact resistance | max. 30 mOhm |
| Operating current per contact | max. 1.5 A |
| Head A: Degree of protection | IP65, IP66K, IP67 |
| Temperature range (mobile) | - 5 ...+ 80 °C |
| Temperature range (fixed) | - 25 ...+ 80 °C |
| Dragchain capable | No |
