Baumer 8141 cable sensor Temperature Measurement

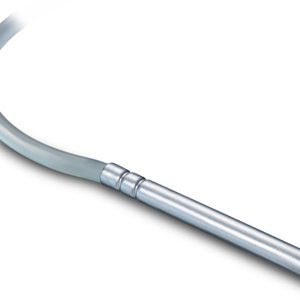

The Baumer 8141 cable sensor Temperature Measurement offers a 46 mm sensor length. Manufactured by Baumer under the Baumer Temperature Measurement category, this model belongs to the VS Series.
| Brand | Baumer |
| Product Type | Temperature Measurement |
| Model Number | 8141 cable sensor |
Baumer 8141 cable sensor Temperature Measurement – Technical Specifications
| Specification | Value |
|---|---|
| Degree of protection (EN 60529) | IP 65 |
| Humidity | < 98 % RH , condensing |
| Vibration (sinusoidal) (EN 60068-2-6) | 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min. |
| Process temperature | -50 … 205 °C |
| Pt100 accuracy class (EN 60751) | B (± 0.3 °C at 0 °C), ± (0.3 + 0.005 × t)°C, A (± 0.15 °C at 0 °C), ± (0.15 + 0.002 × t)°C, 1/3 B (± 0.1 °C at 0 °C), ± 1/3 × (0.3 + 0.005 × t)°C, 1/6 B (± 0.05 °C at 0 °C), ± 1/6 × (0.3 + 0.005 × t)°C |
| Pt1000 accuracy class (EN 60751) | B (± 0.3 °C at 0 °C), ± (0.3 + 0.005 × t)°C, 1/3 B (± 0.1 °C at 0 °C), ± 1/3 × (0.3 + 0.005 × t)°C |
| Process pressure | ≤ 25 bar |
| Sensor length | 46 mm |
| Sensor tube material | AISI 316L (1.4404) |
| Surface roughness wetted parts | Ra ≤ 0.8 µm |
| Without transmitter | Pt100, Pt1000 |
| Cable | Sensor with 4-wire silicone cable |
Obtain a Quote for Temperature Measurement 8141 cable sensor at economical prices. Specifications Overview for , Q2C6$72016MD reveals rated IP 65, providing excellent protection against dust and water. It operates reliably in humidity levels below < 98 % RH , condensing, making it suitable for demanding environments. Designed to withstand harsh conditions, enduring 1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.. The sensor length is 46 mm, ensuring a compact and efficient design. Built with AISI 316L (1.4404) stainless steel, the sensor tube offers superior corrosion resistance for industrial applications. The surface roughness of wetted parts is Ra ≤ 0.8 µm, ensuring optimal performance in precision measurement tasks. Take the First Step with a Quote for your requirement of Temperature Measurement. Our commitment to better pricing and exceptional support sets us apart from other competitors.
