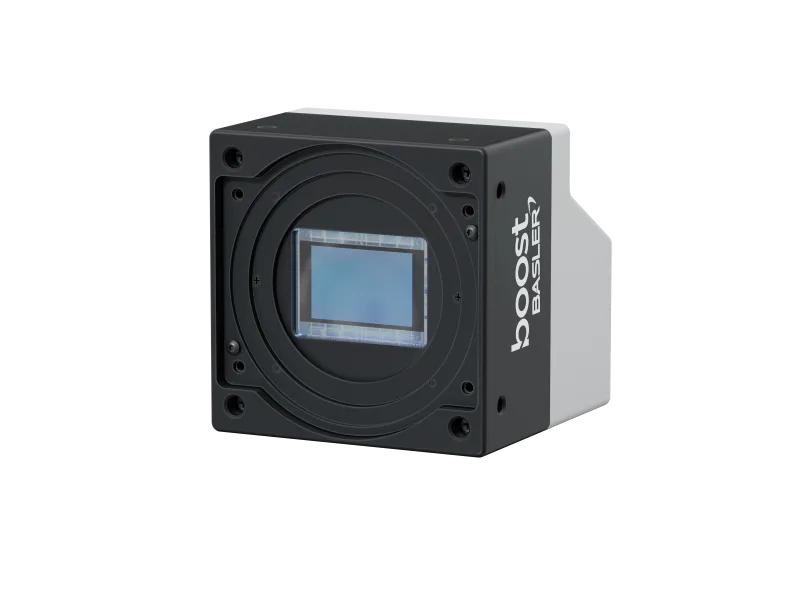

boA9344-70cc: 2200001213 - Basler 70 fps Frame Rate Vision System
Technical Specifications of Basler 70 fps Frame Rate Vision System boA9344-70cc 2200001213:
| Resolution | 65 MP |
| Pixel Size (H x V) | 3.2 μm × 3.2 μm |
| Frame rate | 70 fps |
| Power Supply | PoCXP or 24 VDC |
Basler 70 fps Frame Rate Vision System boA9344-70cc, 2200001213 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | boost V |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Gpixel |
| Sensor | GMAX3265 |
| Shutter | Global Shutter |
| Sensor Format | super 35 mm |
| Sensor Diagonal | 37.4 mm |
| Sensor Type | CMOS |
| Sensor Size | 29.9 mm × 22.4 mm |
| Resolution (H x V) | 9344 px × 7000 px |
| Resolution | 65 MP |
| Pixel Size (H x V) | 3.2 μm × 3.2 μm |
| Frame rate | 70 fps |
| Mono/Color | Color |
| Spectrum | Visible |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| General Purpose I/O | 1 |
| Power Supply | PoCXP or 24 VDC |
| Housing Size (L x W x H) | 71 mm x 65 mm x 65 mm |
| Attribute Name | Attribute Value |
| Type | Lens Accessory |
| Cable Length | 1.8 m |
| LED Color | White |
| Peak Wavelength (typical) | 5000 K |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
| Series Production | now |
| Pixel Bit Depth | 8 bits, 10 bits |
| Synchronization | hardware trigger, software trigger |
| Digital Output | 1 |
| Power Requirements (typical) | 14 W |
| Housing Type | Box |
| Operating Temperature | max 70 °C |
| Mount | F-mount |
| Focal Length | 75 mm |
| Working Distance | 724.7 mm |
| Design-In Sample | now |
Mail Us for your needs in Basler 70 fps Frame Rate Vision System boA9344-70cc part no: 2200001213 with budget-friendly prices. The Main Technical Parameters of boA9344-70cc, 2200001213 inludce boost V Product Family 65 MP resolution with a pixel size of 3.2 μm × 3.2 μm. This camera supports a frame rate of 70 fps and utilizes the CoaXPress (CXP-12) interface for high-speed data transmission. Powered by PoCXP or 24 VDC it ensures reliable operation. The compact housing measures 71 mm x 65 mm x 65 mm making it suitable for various applications. It comes with a standard 1.8 m and Lens Accessory and operates at a peak wavelength of 5000 K. The product line includes 4 housed in a robust Box-type enclosure designed to withstand temperatures up to max 70 °C. Customize Your Experience with a Quote for your requirement of Basler 70 fps Frame Rate Vision System. Experience the difference with our competitive pricing and superior support over other Suppliers.
