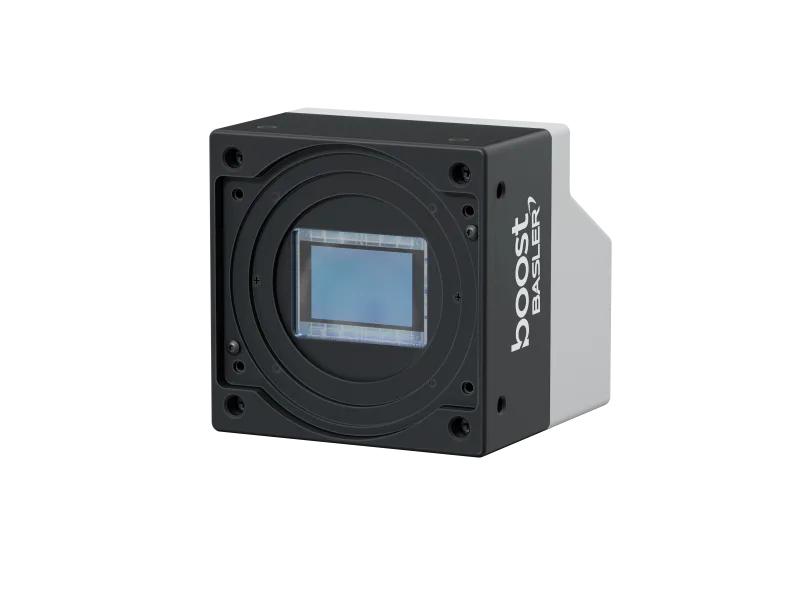

boA5120-230cc: 2200001215 - Basler 230 fps Frame Rate Vision System
Technical Specifications of Basler 230 fps Frame Rate Vision System boA5120-230cc 2200001215:
| Resolution | 21 MP |
| Pixel Size (H x V) | 4.5 μm × 4.5 μm |
| Frame rate | 230 fps |
| Power Supply | PoCXP or 24 VDC |
Basler 230 fps Frame Rate Vision System boA5120-230cc, 2200001215 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | boost V |
| Camera Category | Area Scan Camera |
| Sensor Vendor | Gpixel |
| Sensor | GSPRINT4521 |
| Shutter | Global Shutter |
| Sensor Format | super 35 mm |
| Sensor Diagonal | 29.5 mm |
| Sensor Type | CMOS |
| Sensor Size | 23 mm × 18.4 mm |
| Resolution (H x V) | 5120 px × 4096 px |
| Resolution | 21 MP |
| Pixel Size (H x V) | 4.5 μm × 4.5 μm |
| Frame rate | 230 fps |
| Mono/Color | Color |
| Spectrum | Visible |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| General Purpose I/O | 1 |
| Power Supply | PoCXP or 24 VDC |
| Housing Size (L x W x H) | 76 mm x 65 mm x 65 mm |
| Weight | 400 g |
| Attribute Name | Attribute Value |
| Type | Lens Accessory |
| Cable Length | 1.8 m |
| LED Color | White |
| Peak Wavelength (typical) | 5000 K |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
| Series Production | August 2023 |
| Pixel Bit Depth | 8 bits, 10 bits |
| Synchronization | hardware trigger, software trigger |
| Digital Output | 1 |
| Power Requirements (typical) | 16 W |
| Housing Type | Box |
| Operating Temperature | max 50 °C |
| Mount | F-mount |
| Focal Length | 75 mm |
| Working Distance | 724.7 mm |
| Design-In Sample | now |
| Exposure Control | hardware trigger |
Talk to Our Engineer for Basler 230 fps Frame Rate Vision System boA5120-230cc part no: 2200001215 with exclusive offers. Core System Specifications of boA5120-230cc, 2200001215 are boost V Product Family 21 MP resolution with a pixel size of 4.5 μm × 4.5 μm. This camera supports a frame rate of 230 fps and utilizes the CoaXPress (CXP-12) interface for high-speed data transmission. Powered by PoCXP or 24 VDC it ensures reliable operation. The compact housing measures 76 mm x 65 mm x 65 mm making it suitable for various applications. It comes with a standard 1.8 m and Lens Accessory and operates at a peak wavelength of 5000 K. The product line includes 4 housed in a robust Box-type enclosure designed to withstand temperatures up to max 50 °C. Don't Miss Out on a Quote for your requirement of Basler 230 fps Frame Rate Vision System. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
