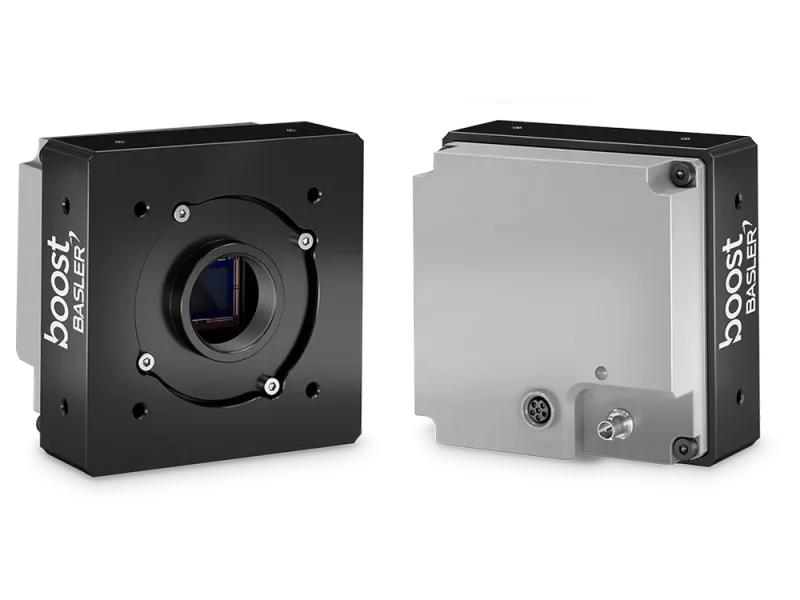

boA4500-45cm: 108389 - Basler Vision Camera with 1 Digital Input
Technical Specifications of Basler Vision Camera with 1 Digital Input boA4500-45cm 108389:
| Resolution | 20 MP |
| Pixel Size (H x V) | 3.2 μm × 3.2 μm |
| Frame rate | 45 fps |
| Power Supply | PoCXP or 24 VDC |
Basler Vision Camera with 1 Digital Input boA4500-45cm, 108389 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | boost R |
| Camera Category | Area Scan Camera |
| Sensor Vendor | onsemi |
| Sensor | XGS 20000 |
| Shutter | Global Shutter |
| Sensor Format | super 35 mm |
| Sensor Diagonal | 20.36 mm |
| Sensor Type | CMOS |
| Sensor Size | 14.4 mm × 14.4 mm |
| Resolution (H x V) | 4500 px × 4500 px |
| Resolution | 20 MP |
| Pixel Size (H x V) | 3.2 μm × 3.2 μm |
| Frame rate | 45 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Interface | CoaXPress (CXP-12) |
| Image Data Interface | CoaXPress (2.5–12.5 Gbps) |
| Digital Input | 1 |
| General Purpose I/O | 2 |
| Power Supply | PoCXP or 24 VDC |
| Housing Size (L x W x H) | 49.1 mm x 80 mm x 80 mm |
| Weight | 525 g |
| Attribute Name | Attribute Value |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | White |
| Peak Wavelength (typical) | 5000 K |
| Protection Class | IP54 |
| Product Line | Standard |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 12.5 Gbps; 50 Gbps |
| Pixel Bit Depth | 10 bits, 12 bits |
| Synchronization | free-run, hardware trigger, software trigger |
| Power Requirements (typical) | 9.7 W |
| Housing Type | Box |
| Operating Temperature | 0 °C - 50 °C |
| Mount | F-mount |
| Focal Length | 75 mm |
| Working Distance | 724.7 mm |
| Exposure Control | hardware trigger, programmable via the camera API |
| Lens Mount | F-mount, M42 x 0.75, M42 x 1 |
Obtain a Quote for Basler Vision Camera with 1 Digital Input boA4500-45cm part no: 108389 at economical prices. Specifications Overview for boA4500-45cm, 108389 reveals boost R Product Family 20 MP resolution with a pixel size of 3.2 μm × 3.2 μm. This camera supports a frame rate of 45 fps and utilizes the CoaXPress (CXP-12) interface for high-speed data transmission. Powered by PoCXP or 24 VDC it ensures reliable operation. The compact housing measures 49.1 mm x 80 mm x 80 mm making it suitable for various applications. It comes with a standard 5 m and Lens Accessory and operates at a peak wavelength of 5000 K. The product line includes 4 housed in a robust Box-type enclosure designed to withstand temperatures up to 0 °C - 50 °C. Take the First Step with a Quote for your requirement of Basler Vision Camera with 1 Digital Input. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
